Optical polarimeter LSM-9100WNIR Ver.2

automaticdigital

Product Overview

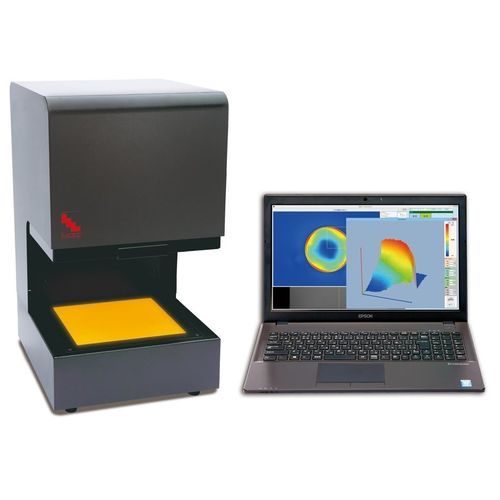

Evaluates 2D distribution maps of strain for colored resin products up to ⌀100 mm in minutes. The Fully Automatic Strain Eye LSM-9100WNIR VER.2 uses the NIR 3-wavelength Linear Polarization Method and a built-in camera to capture measurement data and automate evaluation; no operator judgment is required during measurement.

Key Features

• Fully automatic measurement: place the object and start measurement; results are captured by the built-in camera, reducing operator workload and measurement errors.
• Detects strain, residual stress and cracks in colored resin products that are difficult to assess with conventional polariscopes.
• Software analysis tools: cross-section graphs on 2D distribution maps, histograms for user-defined areas, 3D visualization of 2D maps, CSV export of results, and image storage for analysis.
• Long-life, energy-saving high-luminance LED light source to reduce maintenance and operating costs.

Specification
Inspection method: NIR 3 wavelengths Linear Polarization Method
Measurement range (approx.): 100～5,000 nm
Measurement wavelengths: 900～1,200 nm
Measurement area size: ⌀100 mm
Measurement object placement space (max height): 160 mm
Effective pixels: 550×550
Size (W×D×H): 300×353×540 mm
Weight: 22 kg
Others: Light source: high-luminance LED; Power: AC 100–240 V 50/60 Hz; DC input 24 V 1.6 A; Components: main body, PC, cables; Accessory: main body cover; OS: Windows 10 (64-bit) Japanese/English

Technical specifications

• Model name: Fully Automatic Strain Eye LSM-9100WNIR VER.2
• Inspection method: NIR 3 wavelengths Linear Polarization Method
• Measurement range (approx.): 100～5,000 nm
• Measurement wavelengths: 900～1,200 nm
• Measurement area diameter: 100 mm
• Max object height (placement space): 160 mm
• Image sensor effective pixels: 550 × 550
• Overall dimensions (W×D×H): 300 × 353 × 540 mm
• Weight: 22 kg
• Light source: high-luminance LED (long life, power saving)
• Power: AC 100–240 V 50/60 Hz; DC input 24 V 1.6 A
• Included components: main body, PC, cables; Accessory: main body cover
• OS compatibility: Windows 10 (64-bit), Japanese and English
