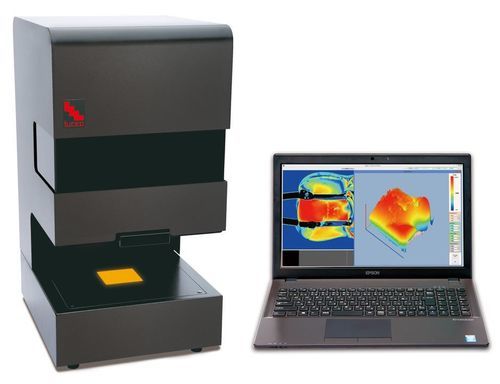

Single-wavelength polariscope LSM-9002S

opticaldigitalautomatic

Overview
Fullauto StrainEye LSM-9002S is a fully automatic 2D measuring device for retardation values and slow-axis direction in transparent samples exhibiting strain and birefringence. With a 6× optical zoom and a built-in CCD camera that measures every pixel across the detecting area, the instrument provides immediate 2D displays of retardation and slow axis for rapid inspection and analysis.

Background and advantages
The system replaces manual polariscope (Senarmont) observations and semi-automatic Senarmont setups by removing operator-dependent brightness decisions and skill variability. By performing per-pixel measurement across the whole detection field rather than sampling a single point, it delivers consistent, reproducible results. The 6× zoom enables inspection of small samples with a configurable measurement area from 60 × 60 mm down to 10 × 10 mm.

Operation and features

• Fully automatic measurement: start measurement by placing the sample on the polarizer.
• Per-pixel 2D measurement and on-screen display of retardation values and slow-axis direction across the entire detecting area.
• Variable measurement area: configurable between 60 × 60 mm and 10 × 10 mm.
• 6× optical zoom lens for imaging and measuring small samples.
• PC connectivity: save measured data and captured images to PC for analysis and archiving.
• Light source: super-luminescent LED for extended life and low power consumption.

Software and compatibility
Delivered components: main unit and PC. Measurement data and image files are exportable to PC. See specifications for the required operating environment.

Technical specifications

• Size: W300 × D353 × H580 mm
• Weight: 21 kg
• Circularly polarizing plate size: W70 × D70 mm
• Sample placement space height: 0–70 mm
• Inspection method: Rotating analyzer method
• Setting wavelength: 590 nm
• Repeat accuracy: σ = 1 nm
• Measurement area size: Variable (60 × 60 ～ 10 × 10 mm)
• Effective pixels: 1100 × 1100
• Other: Light source: high-luminance LED
  Power source: AC 100–240 V 50/60 Hz; DC input 24 V 1.6 A, 38 W
  Components: Main body, PC, cables
  Accessories: AC/DC adapter, main body cover
  OS: Windows 11 Pro (64-bit) Japanese/English
