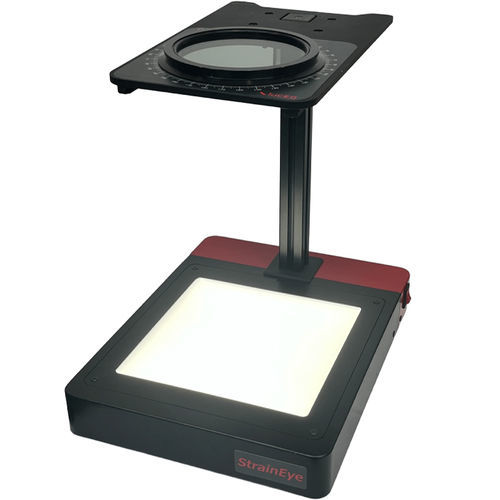

Compact polariscope LSM-1000LE

optical

Product overview
LSM-1000LE visualizes internal stress and birefringence in transparent materials using polarization techniques. It supports analysis of optical axis direction and quantification of retardation when used with a sensitive tint plate or a 1/4 wavelength plate. Designed for inspection of sheet glass edges and small glass or plastic components, the unit is compact and lightweight; an AC adapter is included as standard.

Specification
Application: For the edge of sheet glass; For small glass products; For small plastic products
Size: Mainbody W96×D135×H150mm / Handle L85mm
Weight: 0.7kg (Except for AC adapter)
Inspection Method: Crossed Nicols Method / Sensitive Tint Color Method / Senarmont Method
Effective Dimension of Polarizer: φ78mm
Light Source: LED WHITE 3000K
Power Source: AC100–240V 50/60Hz

Technical specifications

• Application: For the edge of sheet glass
• Application: For small glass products
• Application: For small plastic products
• Size: Mainbody W96×D135×H150mm
• Handle length: L85mm
• Weight: 0.7kg (Except for AC adapter)
• Inspection Methods: Crossed Nicols Method; Sensitive Tint Color Method; Senarmont Method
• Effective Dimension of Polarizer: φ78mm
• Light Source: LED WHITE 3000K
• Power Source: AC100–240V 50/60Hz
• Accessories: AC adapter included as standard
