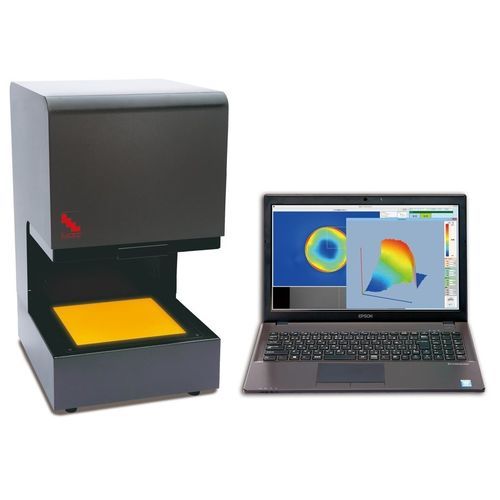

Digital polarimeter LSM-9100 series

opticalautomaticmultiple-wavelength

Product overview
Fully automatic 2D polarimeters LSM-9100W and LSM-9100WS perform pixel-by-pixel measurement of retardation and the slow-axis direction across the entire detection area using a built-in CCD. Measured 2D distributions are displayed and can be saved to a connected PC. A super-luminescent LED (high-luminance LED) provides long life and low power consumption.

Key features

• Fully automatic, area-based (pixel) measurement of retardation and slow-axis direction across the detection field.
• Removes operator-dependent variability of visual methods and is not limited to a single small measurement spot.
• LSM-9100W: measurement area diameter ⌀150 mm for large samples.
• LSM-9100WS: built-in 6× zoom lens for optical magnification and accurate measurement of small samples.
• Measurement method: RGB Linear Polarization Method.
• Measurement wavelength range: 420–680 nm.
• High-luminance (super-luminescent) LED light source for reduced maintenance and lower operating cost.

Applications / advantages

• Quantitative mapping of retardation and slow-axis direction for immediate visual assessment of birefringence and strain distribution.
• Improves measurement reproducibility versus subjective visual techniques.
• Suitable for area mapping and 2D visualization of birefringence in transparent materials, process control, and research applications.

Technical specifications

• Size: LSM-9100W: W300 × D353 × H540 mm; LSM-9100WS: W300 × D353 × H580 mm
• Weight: LSM-9100W: 22 kg; LSM-9100WS: 24 kg
• Sample placement height (max): LSM-9100W: 160 mm; LSM-9100WS: 115 mm
• Measurable retardation range: 0–3,000 nm
• Inspection method: RGB Linear Polarization Method
• Measurement wavelength: 420–680 nm
• Measurement area: LSM-9100W: ⌀150 mm; LSM-9100WS: variable with zoom. Standard: 60 × 60 to 10 × 10 mm. Option: 30 × 30 to 5 × 5 mm (with ×2 extension lens)
• Effective pixels: 1100 × 1100
• Light source: high-luminance (super-luminescent) LED
• Power supply: AC 100–240 V 50/60 Hz; DC input 24 V 1.6 A
• Components: main body, PC, cables; Accessory: main body cover
• Operating system: Windows 10 (64-bit)
