Optical polariscope LSM-9002LE

automaticdigitalsingle-wavelength

Overview

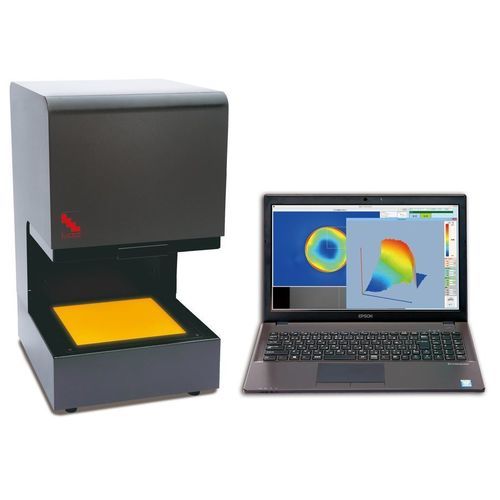

The Fullauto StrainEye LSM-9002LE is a fully automatic 2D polarimetric measurement system that determines phase retardation and the direction of the slow axis across transparent samples exhibiting birefringence or strain. A built-in CCD captures the entire measurement area and the system computes retardation and slow-axis orientation on a pixel-by-pixel basis, producing objective, repeatable maps displayed immediately on the monitor. The automated workflow eliminates operator-dependent analyzer rotation and visual judgment required by conventional Senarmont methods.

Key features and advantages

• Fully automatic operation: place the sample on the circular polarizing plate and start measurement without manual analyzer rotation.
• Pixel-resolved mapping of retardation and slow-axis direction across the full 205×205 mm detection area (effective 1100×1100 pixels).
• Removes operator-dependent brightness and decision variability inherent to visual Senarmont and semi-automatic devices.
• Large sample stage (205×205 mm) suitable for single large samples or multiple small samples placed side-by-side.
• PC connectivity for saving measured data and exporting images; compatible with Windows 11 Pro (64-bit).
• High-luminance super-luminescent LED light source for long life and low power consumption.

Applications

• Stress and strain analysis in glass, plastics and optical components.
• Quality control of polymer films, laminated materials and adhesives.
• Inspection of displays, substrates and transparent parts in R&D and manufacturing environments.

Specifications

• Model: LSM-9002LE
• Dimensions: W300 × D353 × H540 mm
• Weight: 19 kg
• Circular polarizing plate size / measurement area: W205 × D205 mm
• Sample placement space height: 0–130 mm
• Inspection wavelength/method: 590 nm
• Repeat accuracy: σ = 1 nm
• Measurement area size: 205 × 205 mm
• Effective pixels: 1100 × 1100
• Light source: high-luminance super-luminescent LED
• Power: AC100–240V 50/60Hz; DC input 24V 1.6A
• Components supplied: main body, PC, cables
• Accessories: AC/DC adapter, main body cover
• OS compatibility: Windows 11 Pro (64-bit) Japanese / English
• Additional: Demonstration videos available from the manufacturer for the Fullauto StrainEye product family.
