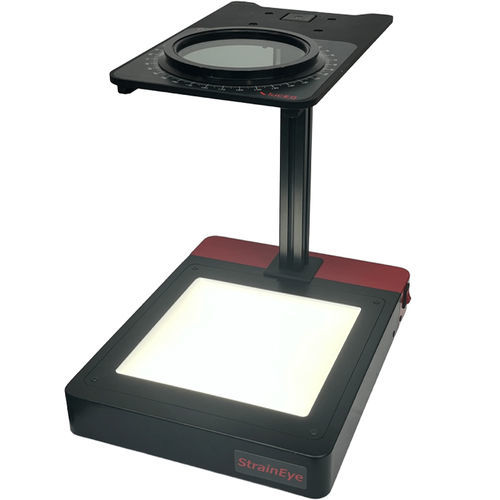

Optical polariscope LSM-2300LE

Overview
Compact polarized strain inspection unit for checking stress patterns and presence of strain in transparent materials such as glass and plastic. Small footprint design allows seated operation, reducing operator fatigue and enabling inline use on production benches.

Application

• Detection of existence or absence of strain in small glass products
• Identification of strain pattern in small plastic components

Inspection Method
Sensitive Color Method based on polarized light analysis for visualization of stress distribution.

View area
Effective dimension of analyzer: φ84mm
Effective dimension of polarizer: W120×D120mm

Light Source
LED WHITE 3000K

Power Source
AC100–240V

Technical specifications

• Size: W180×D245×H264mm
• Weight: 3.4 kg
• Inspection method: Sensitive Color Method
• View area: Analyzer φ84mm; Polarizer W120×D120mm
• Light source: LED WHITE 3000K
• Power source: AC100–240V
