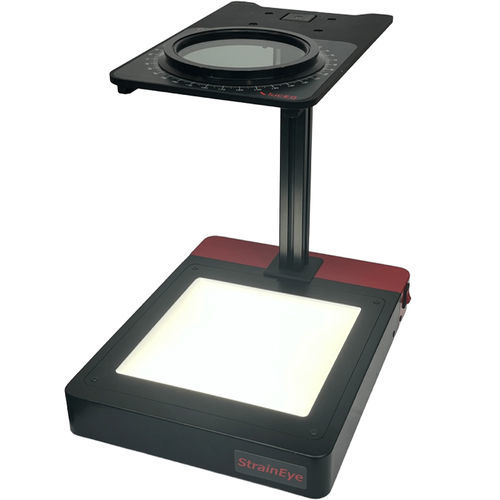

Optical polariscope LSM-8201LE

modular circular

Product Overview
LSM-8201LE from the LSM-8000LE series visualizes internal stress and birefringence in transparent materials using polarization techniques. Designed for large samples, this model implements the Circularly Polarizing Light Method. Two models are available in the series, each using a different inspection method to suit varied use cases.

Applications

• Inspecting strain in optical glass
• Inspecting strain in glass tubes
• Inspecting strain in molded plastics
• Detecting defects in film
• Detecting defects in crystal

Key specifications

• Series: LSM-8000LE
• Model: LSM-8201LE
• Inspection method: Circularly Polarizing Light Method
• Light source: LED White 3000K
• Power supply: AC100–240V 50/60Hz
• Body dimensions: W500 × D550 × H660 mm
• Polarizer size: diameter W350 × D300 mm
• Analyzer diameter: 200 mm
• Weight: 26 kg

Operation & compatibility

• Suitable for large and irregular-shaped transparent samples due to the large polarizer diameter
• Two series models offer alternative inspection methods; select model according to measurement requirements
• Check technical documentation for electrical interfaces and integration into inspection lines
