Optical polariscope LSM-2100LE
Add to favorites
Compare this product
Characteristics
- Options
- optical
Description

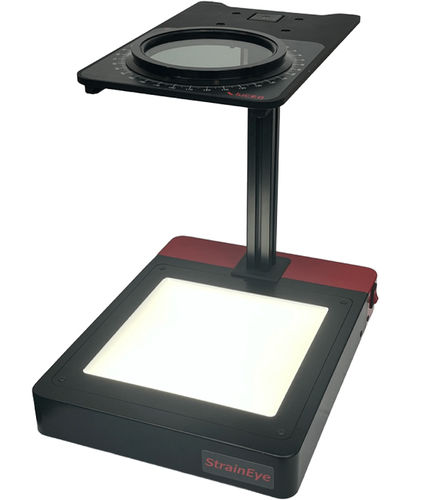

LSM-2100LE — Polarizing inspection unit
Designed for inspection of small glassware and thin plastic materials, the LSM-2100LE reveals strain patterns, fine dust, pinholes and flow lines using crossed polarizers. It is suitable for quality control of small glass components, detection of pinholes in plastic films and evaluation of flowage states in molded plastics to verify processing conditions and support production optimization.
Specification
Application: For inspections of small glassware; for setup and inspection of small molded plastic products
Size: W180×D245×H264mm
Weight: 3.4kg
Inspection Method: Crossed Nicols Method
View area: Analyzer effective diameter φ84mm; Polarizer effective dimension W120×D120mm
Light Source: LED WHITE 3000K
Power Source: AC100–240V
Features / Technical specifications
Designed for inspection of small glassware and thin plastic materials, the LSM-2100LE reveals strain patterns, fine dust, pinholes and flow lines using crossed polarizers. It is suitable for quality control of small glass components, detection of pinholes in plastic films and evaluation of flowage states in molded plastics to verify processing conditions and support production optimization.
Specification
Application: For inspections of small glassware; for setup and inspection of small molded plastic products
Size: W180×D245×H264mm
Weight: 3.4kg
Inspection Method: Crossed Nicols Method
View area: Analyzer effective diameter φ84mm; Polarizer effective dimension W120×D120mm
Light Source: LED WHITE 3000K
Power Source: AC100–240V
Features / Technical specifications
- Application: Inspection of small glassware; evaluation and setup for small molded plastic products
- Size: W180×D245×H264mm
- Weight: 3.4kg
- Inspection Method: Crossed Nicols Method
- View area: Analyzer effective diameter φ84mm; Polarizer effective dimension W120×D120mm
- Light Source: LED WHITE 3000K
- Power Source: AC100–240V
