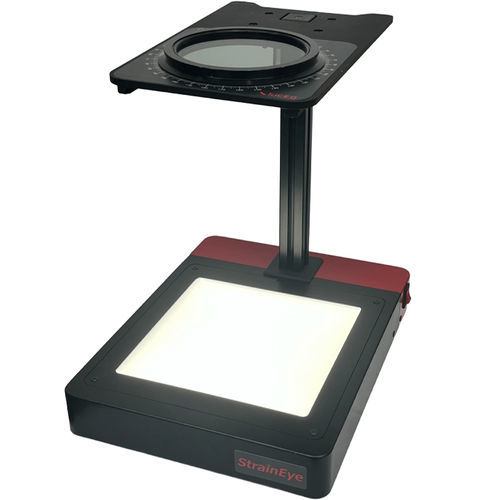

Optical polariscope LSM-2200LEcompact
Add to favorites
Compare this product
Characteristics
- Options
- compact, optical
Description
Overview
Strain distribution patterns observed in photoelastic images remain unchanged when a transparent glass or plastic sample on the stage is rotated within the plane. The compact LSM-2200LE is designed for inspection of relatively small products and parts such as halogen lamps, lenses and prisms. The specimen can be inspected while being held by hand. The analyzer is mounted at an inclined angle to allow continuous use while seated, facilitating inspection workflow in departments where all products must be examined.
Applications
For inspections of small-sized products and parts, including halogen lamps, optical lenses and prisms; suitable for manual and benchtop visual inspection tasks.
Technical specifications
Strain distribution patterns observed in photoelastic images remain unchanged when a transparent glass or plastic sample on the stage is rotated within the plane. The compact LSM-2200LE is designed for inspection of relatively small products and parts such as halogen lamps, lenses and prisms. The specimen can be inspected while being held by hand. The analyzer is mounted at an inclined angle to allow continuous use while seated, facilitating inspection workflow in departments where all products must be examined.
Applications
For inspections of small-sized products and parts, including halogen lamps, optical lenses and prisms; suitable for manual and benchtop visual inspection tasks.
Technical specifications
- Size: W180×D245×H264mm
- Weight: 3.4 kg
- Inspection method: Circularly Polarized Light Method
- View area – Analyzer effective dimension: φ84 mm
- View area – Polarizer effective dimension: W120×D120 mm
- Light source: LED WHITE 3000K
- Power source: AC100–240V
