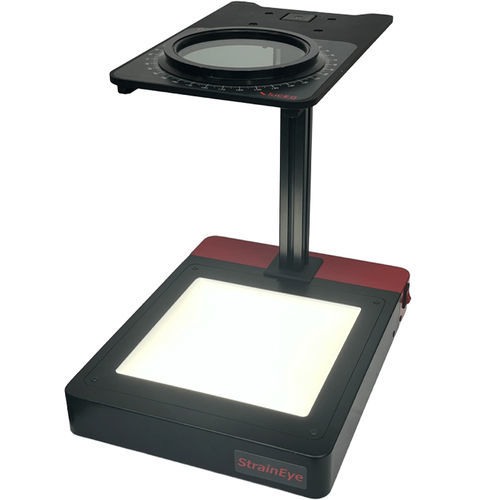

Optical polariscope LSM-8400LE

Overview
LSM-8400LE is a polarization-based stress and birefringence analyzer designed for large transparent samples. It visualizes internal stress distribution and birefringence using multiple polarization inspection methods and supports inspection of large-area components with an analyzer effective diameter of φ200mm.

Applications

• Inspecting stress and birefringence in optical glass
• Inspecting stress in glass tubes and cylindrical components
• Analyzing residual stress in molded plastics
• Detecting defects in films and coatings
• Inspecting crystals and precision optical elements

Inspection methods

• Crossed Nicols method
• Sensitive tint color method
• Senarmont method

View area
Analyzer effective diameter: φ200mm
Polarizer effective dimension: W350×D350mm

Dimensions & weight
W500×D550×H660mm
Weight: 26 kg

Power
AC100–240V, 50/60Hz

Technical specifications

• Model: LSM-8400LE
• Series: LSM-8000LE series
• Applications: Stress/birefringence inspection of glass, glass tubes, molded plastics, films and crystals
• Inspection methods: Crossed Nicols; Sensitive tint color; Senarmont
• View area — Analyzer: φ200mm; Polarizer: W350×D350mm
• Dimensions: W500×D550×H660mm; Weight: 26 kg
• Power supply: AC100–240V 50/60Hz
