5-axis CNC machining center a900Z

horizontal60 toolsdirect-drive

Overview

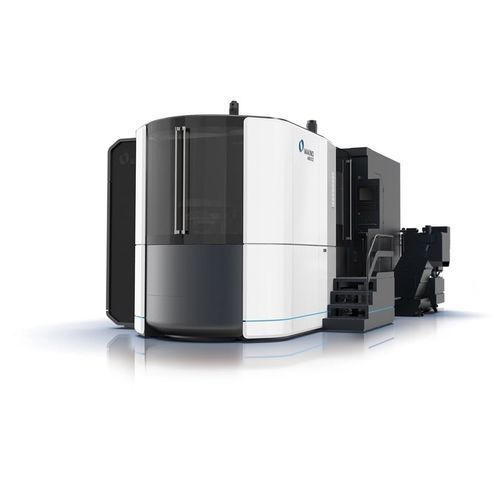

The Makino a900Z is a horizontal 5-axis machining center with a factory-integrated Z-type fifth axis designed to machine complex geometries with fewer setups. It supports large workpieces up to Φ1250×1000 mm and a maximum pallet load of 1200 kg, providing high metal removal capability on a rigid three-point leveled bed.

Product details
The machine's kinematic layout minimizes force path lengths through the spindle and workpiece, efficiently transferring cutting loads into the three-point bed. This arrangement maximizes metal removal rates and extends tool life through superior system rigidity while leveraging the proven nx-series HMC platform.

Key features

• Factory-built, fully integrated Z-type fifth axis (5-axis capability)
• Designed to reduce workholding setups for complex geometries
• Kinematic design minimizes force path lengths through spindle and workpiece
• Three-point leveled bed for efficient transfer of cutting loads and reactive forces
• High system rigidity to maximize metal removal rates and perishable tool life
• Built on the proven nx-series four-axis HMC platform

Technical specifications

• Brand: Makino
• Model: a900Z
• Product category: Horizontal 5-axis machining center
• Maximum workpiece size: Φ1250 × 1000 mm
• Maximum pallet load: 1200 kg
• Pallet size: 800 × 800 mm
• Travel (X/Y/Z): 1400 / 1200 / 1185–1265 mm
• B/C axes: B 360° / C 180°
• Spindle: BT50 (option HSK-A100)
• Spindle speed: 20–10000 min⁻¹ (options 8000, 15000)
• Rapid traverse (X/Y/Z): 60000 mm/min
• Tool magazine: 60 tools (option 185)
• Max tool length/diameter: 900 mm / up to 356 mm
