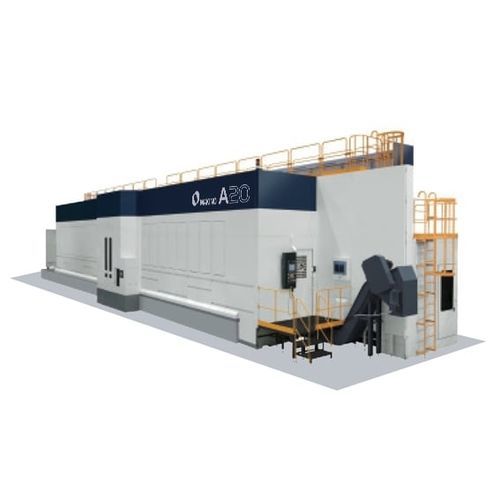

5-axis CNC machining center MAG A12-MAG A20.H

horizontalfor aluminum120 tools

Overview
The MAG A12‑MAG A20.H is a 5-axis horizontal machining center designed for high-productivity aerospace machining of large, complex aluminum monolithic parts. It provides extended travels and a large pallet capacity compared with smaller MAG models, pairing a high-speed, high-power spindle with rapid axis dynamics to maximize metal removal capability.

Key features

• 33,000 rpm spindle with 130 kW power for high metal-removal rates
• Extended X/Y/Z strokes and large pallet size for machining large aerospace components
• Compact spindle and short pivot point for five-face workpiece accessibility to minimize setups
• High rapid traverse and cutting feedrates to maximize in-cut spindle time
• Automation-ready: integration with automatic pallet transfer and storage systems for extended unattended operation (automation options available)

Technical specifications

• Pallet: Up to 20,000 x 2,300 mm
• Travel X/Y/Z: Up to 20,200 / 2,500 / 650 mm
• A-axis: 220° (-110° to +110°)
• C-axis: 360°
• Spindle speed: 33,000 rpm
• Spindle power: 130 kW
• Rapid traverse (X/Y/Z): 65,000 mm/min
• Cutting feedrate (X/Y/Z): 65,000 mm/min
• Maximum workpiece envelope: Up to 20,000 x 2,300 x 500 mm (with limitations)
• Maximum payload: Up to 10,500 kg
• ATC capacity: 120 tools
• Tool-to-tool: 13 sec
• Chip-to-chip: 20 sec
• Max tool length (HSK): 305 mm
• Max tool diameter: 100 mm
• Max tool weight: 8 kg

Related notes
The MAG A Series platform focuses on rapid precision-contouring by combining spindle speed and power with high-axis dynamics to maximize productive cutting time while reducing setups and process variation.

Specifications (summary)

• Pallet dimensions: Up to 20,000 x 2,300 mm
• Axes travel: X up to 20,200 mm; Y up to 2,500 mm; Z up to 650 mm
• A-axis travel: 220° (-110° to +110°)
• C-axis travel: 360°
• Spindle: 33,000 rpm, 130 kW
• Rapid traverse / cutting feed: 65,000 mm/min (X/Y/Z)
• Workpiece envelope: Up to 20,000 x 2,300 x 500 mm (with limitations)
• Maximum payload: 10,500 kg
• ATC capacity: 120 tools; tool-to-tool 13 s; chip-to-chip 20 s
• Max tool length (HSK): 305 mm; diameter: 100 mm; weight: 8 kg
