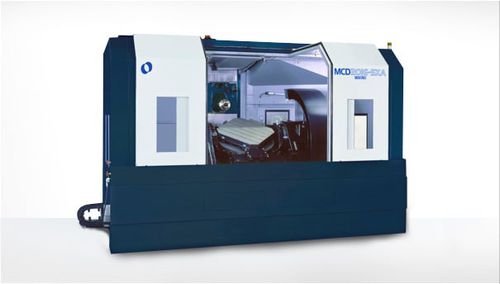

5-axis CNC machining center MCD2016-5XA

horizontal60 tools120 tools

Overview
Designed for 5-axis mold machining, the MCD2016-5XA horizontal machining center delivers multiface indexing and simultaneous 5-axis control for high-speed, high-accuracy mold production. Standard 6,000 rpm spindle and heavy-duty structure allow machining of large workpieces up to ø2000 mm and weights up to 5,060 lbs (≈ 2.3 tons).

Technical summary

• High-accuracy feedback and thermal stability: 0.1 µm scale feedback with Makino Thermal Stabilizer standard; Thermal Chamber available as an option.
• A- and B-axes: 0.0001° indexing for precise multiface machining and reliable simultaneous 5-axis control.
• Engineering focused on heavy-duty machining and multiface indexing of large mold workpieces.

Key specifications (table)
Pallet: 1000 mm
X: 2000 mm Y: 1600 mm Z: 1300 mm
A-Axis: 115° (-100° to +15°)
B-Axis: 360°
C-Axis: None
Spindle RPM: 6,000 rpm
Rapid Traverse: 16,000 mm/min
Cutting Feedrate: 630 in/min
Maximum Workpiece: ø2000 x 1520 mm R
Maximum Payload: 5,060 lbs.
ATC Capacity: 30 (60, 99, 120)
Maximum Tool Diameter: 11.81"

Technical features / specifications

• Model: MCD2016-5XA
• Machine type: Horizontal Machining 5-Axis
• Pallet size: 1000 mm
• Travel (X × Y × Z): 2000 mm × 1600 mm × 1300 mm
• A-Axis stroke: 115° (-100° to +15°)
• B-Axis stroke: 360°
• C-Axis: None
• Spindle speed: 6,000 rpm (standard)
• Rapid traverse: 16,000 mm/min
• Cutting feedrate: 630 in/min
• Maximum workpiece capacity: ø2000 × 1520 mm R
• Maximum payload: 5,060 lbs (≈ 2.3 tons)
• ATC capacity: 30 tools (options: 60, 99, 120)
• Maximum tool diameter: 11.81"
• Feedback resolution: 0.1 µm scale feedback
• Indexing accuracy: A/B axes 0.0001° indexing
• Thermal stability: Makino Thermal Stabilizer standard; Thermal Chamber optional
• Intended application: Multiface indexing and simultaneous 5-axis mold machining of large workpieces
