5-axis CNC machining center MAG A8.H

horizontalfor aluminum120 tools

Overview

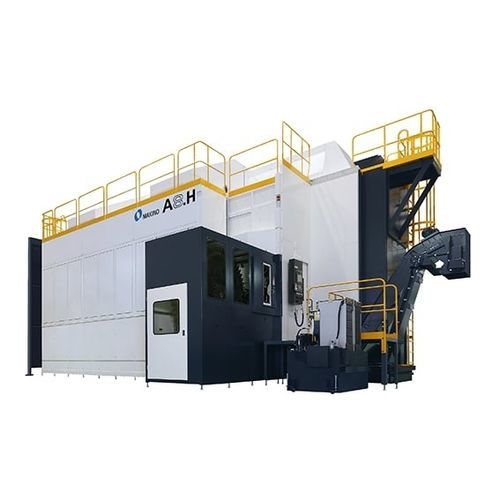

The MAG A8.H is a 5-axis horizontal machining center engineered for high-productivity aerospace machining of large, complex aluminum monolithic parts. Compared with smaller MAG family machines it offers larger strokes and a larger pallet, and integrates a high-speed 33,000 rpm / 130 kW spindle plus rapid axis motion to maximize metal removal. The design supports extended unattended operation when paired with automatic pallet transfer and storage systems.

Key features

• Specifically built for aerospace machining of large, complex monolithic aluminum parts
• 33,000 rpm, 130 kW spindle for high metal-removal rates
• Larger strokes and pallet size versus smaller MAG models
• High rapid traverse and cutting feedrates to maximize in-cut spindle time
• Compact spindle with short pivot point for five-face accessibility, reducing setups and process variation
• Compatible with automatic pallet transfer and storage systems for extended unattended operation

Technical specifications (selected)

• A-Axis: 220° (-110° ~ +110°)
• C-Axis: 360°
• Spindle speed: 33,000 rpm
• Spindle power: 130 kW
• Rapid traverse (X, Y, Z): 65,000 mm/min (5,560 IPM)
• Cutting feedrate (X, Y, Z): 65,000 mm/min (5,560 IPM)
• Pallet size: 8,000 × 2,300 mm (315.0 in × 90.6 in)
• Travel X × Y × Z: 8,200 mm × 2,500 mm × 650 mm (322.8 in × 98.4 in × 25.6 in)
• Maximum workpiece: 8,000 mm × 2,500 mm × 500 mm (with limitations)
• Maximum payload: 5,000 kg (11,000 lbs)
• ATC capacity: 120 tools
• Tool-to-tool time: 13 sec
• Chip-to-chip time: 20 sec
• Maximum tool length (HSK): 305 mm (12.0 in)
• Maximum tool diameter: 100 mm (3.9 in)
• Maximum tool weight: 8 kg (17.6 lbs)
