5-axis CNC machining center MAG4

horizontalfor aluminum120 tools

Product Overview

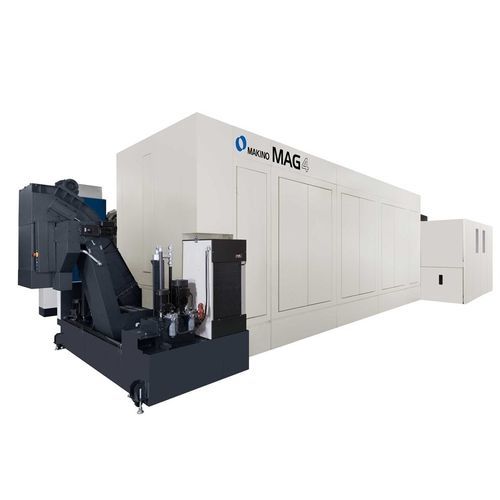

The MAG4 5-axis horizontal machining center is engineered for high-productivity aerospace machining of large, complex aluminum monolithic structures. It offers increased X and Y travels and a larger pallet compared with MAG3 models, enabling five-sided access for large structural components such as wing ribs. The MAG4 integrates a 33,000 rpm, 130 kW spindle with rapid acceleration and through-spindle coolant to maximize material removal rates and minimize setup frequency.

Key Features

• 33,000 rpm spindle paired with 130 kW power for high metal-removal capability.
• Expanded X and Y travels and larger pallet size for machining larger aerospace structures.
• Compact spindle design and short pivot point for superior five-face accessibility and reduced setups.
• High rapid traverse and cutting feedrates to maximize in-cut spindle time.
• Through-spindle coolant capability with high-pressure support for advanced cutting strategies.
• Automatic Tool Changer (ATC) with large capacity options (standard 120, optional 180).

Compatibility / Integration
Compatible with Makino MMC2 automatic pallet transfer and storage systems. The MAG4 can be configured for extended unattended operation and integrated into high-productivity aerospace production workflows, supporting pallet automation and scheduled lights-out machining.

Technical Specifications

• Pallet: 3,500 x 2,000 mm (137.8" x 78.7").
• Travel (Metric): X: 4,000 mm, Y: 2,200 mm, Z: 800 mm.
• Travel (English): X: 157.5", Y: 86.6", Z: 31.5".
• A-Axis: ±110°.
• C-Axis: 360°.
• Spindle speed and power: 33,000 rpm – 130 kW (174 HP).
• Rapid traverse (Metric): X: 62.7 m/min, Y: 50.0 m/min, Z: 60.0 m/min.
• Rapid traverse (English): X: 2,468 ipm, Y: 1,968 ipm, Z: 2,362 ipm.
• Cutting feedrate (Metric): 50.0 m/min.
• Cutting feedrate (English): 1,968 ipm.
• Maximum workpiece (Metric): 4,000 x 2,000 x 700 mm.
• Maximum workpiece (English): 157.5" x 78.7" x 27.6".
• Maximum payload: 4,000 kg (8,818 lbs).
• ATC capacity: 120 (optionally 180).
• Maximum tool diameter: 100 mm (3.9").
• Maximum tool weight: 8 kg (17.6 lbs).
• Optional ATC capacity: Yes.
• Through-spindle coolant: 1.5 MPa (217 psi).
