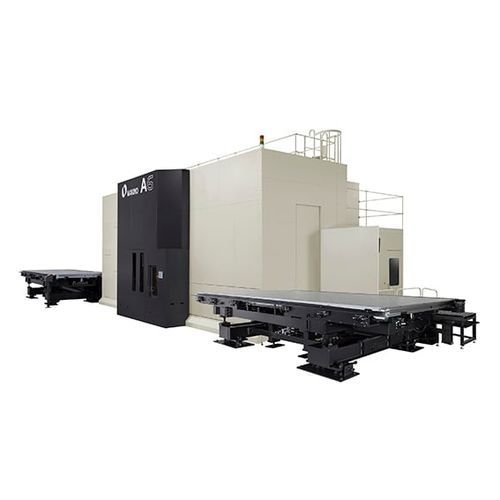

5-axis CNC machining center MAG A6

horizontalfor aluminum120 tools

Overview
The MAG A6 5-axis horizontal machining center is specifically designed for high-productivity aerospace machining of large, complex aluminum monolithic parts. With larger strokes and pallet size compared to smaller MAG family machines, the MAG A6 integrates a high-speed, high-power spindle and rapid machine movement to maximize metal removal capabilities.

Key Features

• Purpose-built for aerospace machining of large, complex aluminum monolithic parts
• 33,000 rpm – 130 kW spindle design for high metal-removal rates
• Compact spindle and short pivot point for five-face workpiece accessibility to minimize setups and process variation
• Can be integrated with an automatic pallet transfer and storage system for extended unattended operation

Technical Specifications (Metric)
A-Axis: 220° (-110° ~ +110°)
C-Axis: 360°
Spindle RPM: 33,000 rpm
Rapid Traverse: 65,000 mm/min (X, Y, Z)
Cutting Feedrate: 65,000 mm/min (X, Y, Z)
Maximum Workpiece: 6,000 mm X 2,200 mm x 500 mm (with limitations)
Maximum Payload: 5,000 kg
ATC Capacity: 120
Tool to Tool: 13 sec
Chip to Chip: 20 sec
Maximum Tool Length HSK: 305 mm
Maximum Tool Diameter: 100 mm
Maximum Tool Weight: 8 kg

Technical Specifications (English)
Pallet: 236.0" x 78.7"
Axes (example strokes): X: 244.1" Y: 86.6" Z: 25.6"
A-Axis: 220° (-110° ~ +110°)
C-Axis: 360°
Spindle RPM: 33,000 rpm
Rapid Traverse: 5,560 IPM (X, Y, Z)
Cutting Feedrate: 5,560 IPM (X, Y, Z)
Maximum Workpiece: 236" X 86.6" x 19.7" (with limitations)
Maximum Payload: 11,000 lbs
ATC Capacity: 120
Tool to Tool: 13 sec
Chip to Chip: 20 sec
Maximum Tool Length HSK: 12.0"
Maximum Tool Diameter: 3.9"
Maximum Tool Weight: 17.6 lbs

Notes
Machine platform is designed to provide rapid precision-contouring capability while maximizing percentage of in-cut spindle time. The MAG A Series emphasizes high spindle speed and power combined with machine dynamics suitable for large-part, high-metal-removal aerospace applications.
