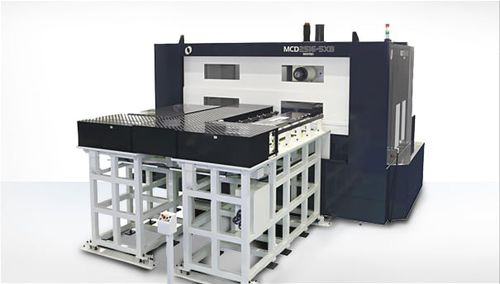

5-axis CNC machining center MCD2516-5XB

horizontal60 tools120 tools

Product overview
The MCD2516-5XB is a 5-axis horizontal machining center designed for multiface indexing and simultaneous 5-axis machining of large, complex aerospace and industrial components. It combines large-capacity workholding with high-precision feedback and thermal stability measures for consistent high-accuracy production.

Key features

• Standard 6,000 rpm spindle, with higher-speed spindle options available for specific applications.
• Workpiece capacity for large parts up to 2,700 × 1,600 mm and payloads around 2,000 kg (≈4,400 lb), depending on configuration.
• 0.1 µm linear scale feedback for precise positioning.
• Thermal-stability systems including Makino Thermal Stabilizer; optional Thermal Chamber for strict temperature control.
• A- and B-axes with 0.0001° indexing for high-accuracy multiface machining and true simultaneous 5-axis control.
• Multiface indexing capability for efficient processing of large, asymmetrical components.
• ATC capacity standard 30 tools (options: 60, 99, 120).

Dimensions / capacity (select values)
Pallet: 1800 × 1000 mm
X travel: 2500 mm, Y travel: 1600 mm, Z travel: 1300 mm
Maximum workpiece (example): up to 2700 × 1600 mm R (geometry-dependent; some configurations list restricted envelopes such as 2400 × 1100 × 790 mm)
Maximum payload: ~2000 kg (≈4,400 lb)

Notes

• Rapid traverse (metric): 16,000 mm/min.
• Cutting feedrate (page values): 630 in/min (imperial listing).
• Maximum tool diameter (imperial listing): 11.81".

Technical specifications

• Model: MCD2516-5XB
• Type: 5-axis horizontal machining center
• Spindle speed: 6,000 rpm (standard)
• Pallet size: 1800 × 1000 mm
• Travels: X 2500 mm; Y 1600 mm; Z 1300 mm
• A-axis: 130° (–110° to +20°)
• B-axis: ±225°
• ATC capacity: 30 (options: 60, 99, 120)
• Feedback & accuracy: 0.1 µm scale feedback; A/B axes 0.0001° indexing
• Thermal measures: Makino Thermal Stabilizer; Thermal Chamber optional
