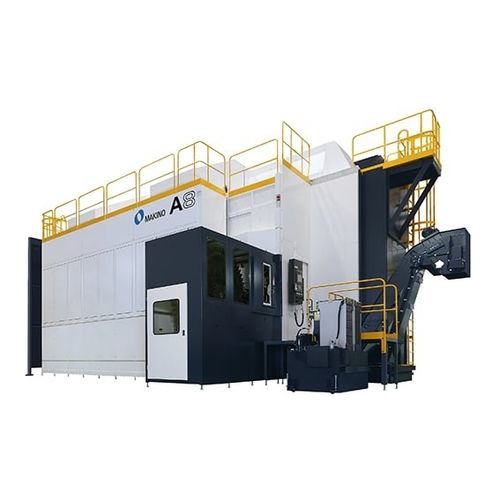

5-axis CNC machining center MAG A8

horizontalfor aluminum120 tools

Overview
The MAG A8 5-axis horizontal machining center is engineered for high-productivity aerospace machining of large, complex aluminum monolithic parts. With extended strokes and a large pallet, the MAG A8 combines a high-speed, high-power spindle with rapid traverse rates to maximize metal removal and reduce cycle times. The machine supports integration with automatic pallet transfer and storage systems for long periods of unattended operation.

Key features

• 33,000 rpm spindle with 130 kW power for very high metal-removal rates
• Large pallet (8,000 x 2,000 mm) and extended X/Y/Z strokes to accommodate oversized aerospace monolithics
• Compact spindle design and short pivot point for five-face accessibility, minimizing setups
• Optional integration with automatic pallet transfer and storage systems for extended unattended production
• High rapid traverse and cutting feedrates (65,000 mm/min) to maximize in-cut spindle time
• 120-position automatic tool changer (ATC) to support long production runs

Applications

• High-productivity aerospace machining of complex aluminum monolithic parts

Technical specifications

• Pallet: 8,000 x 2,000 mm
• X / Y / Z strokes: X: 8,200 mm; Y: 2,200 mm; Z: 650 mm
• A-Axis: 220° (-110° to +110°)
• C-Axis: 360°
• Spindle speed: 33,000 rpm
• Spindle power: 130 kW
• Rapid traverse (X, Y, Z): 65,000 mm/min
• Cutting feedrate (X, Y, Z): 65,000 mm/min
• Maximum workpiece: 8,000 mm x 2,200 mm x 500 mm (with limitations)
• Maximum payload: 5,000 kg
• ATC capacity: 120 tools
• Tool-to-tool time: 13 sec
• Chip-to-chip time: 20 sec
• Maximum tool length (HSK): 305 mm
• Maximum tool diameter: 100 mm
• Maximum tool weight: 8 kg
