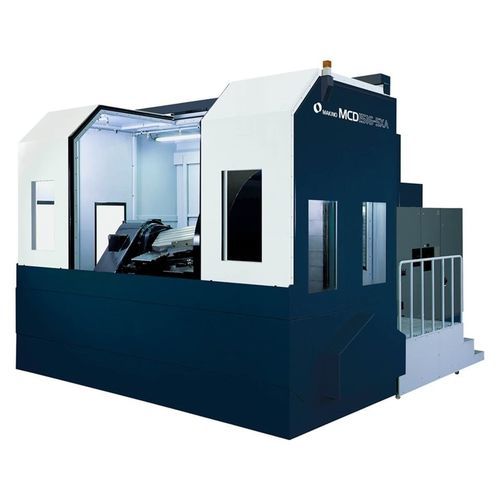

5-axis CNC machining center MCD1516-5XA

horizontal60 tools120 tools

Product overview
Horizontal trunnion 5‑axis machining center designed for high‑efficiency machining of large workpieces and complex geometries. Suitable for palletized heavy parts with reduced setup requirements.

Detailed overview
Trunnion‑type 5‑axis horizontal machining center with pallet size 1000 × 1000 mm and maximum pallet load up to 2300 kg. Standard spindle speed is 6000 min-1; optional bar spindle with 300 mm stroke and high‑speed RJ spindles (15000 / 18000 min-1) are available. Semi‑floating sliding guide surfaces keep sliding resistance constant regardless of workpiece load to reduce lost motion. A column stabilizer is standard to limit machine attitude change and stabilize long‑duration machining. The machine is enclosed with a full splash guard and offers an optional temperature‑controlled chamber for thermal management.

Key features

• Trunnion structure enables efficient 5‑axis machining of large workpieces
• Standard spindle 6000 min-1; optional bar spindle (300 mm stroke) and high‑speed RJ spindle (15000 / 18000 min-1)
• Semi‑floating sliding guide surfaces to stabilize sliding resistance and reduce lost motion
• Standard column stabilizer to maintain machining accuracy during long cycles
• Full machine splash guard and optional temperature‑controlled chamber for thermal control

Main specifications (excerpt)

• Model: MCD1516-5XA
• Structure: Trunnion 5‑axis horizontal machining center
• Pallet size: 1000 × 1000 mm
• Axis strokes: X 1500 mm / Y 1600 mm / Z 1300 mm
• Rotary axis range: A 115° (−100 to +15°) / B 360°
• Spindle speed: 10–6000 min-1 (options: 4000, 8000, 15000, 18000 min-1)
• Spindle nose: 7/24 taper #50 (option: HSK-A100)
• Max workpiece size: Φ2000 × SR1530 mm (with restrictions)
• Max pallet load: 2300 kg
• Tool capacity: 30 tools standard (options: 60, 99, 120)
• Max tool length: 750 mm
• Max tool diameter: 125 / 300 mm (no restriction / with restriction)
• Max tool mass: 30 kg
• Rapid/cutting feed: X/Y/Z 16000 mm/min / B 1440°/min / A 720°/min
