5-axis CNC machining center MCD2016-5XB
horizontal60 tools120 tools

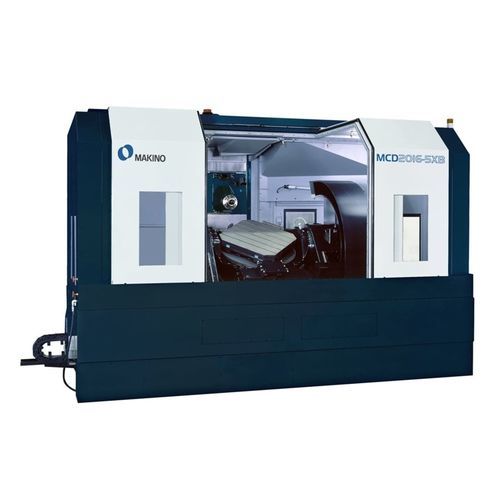

5-axis CNC machining center - MCD2016-5XB - MAKINO Milling Machine - horizontal / 60 tools / 120 tools
5-axis CNC machining center - MCD2016-5XB - MAKINO Milling Machine - horizontal / 60 tools / 120 tools
Add to favorites
Compare this product

Characteristics

Number of axes
5-axis
Spindle orientation
horizontal
Number of tool stations
30 tools, 60 tools, 120 tools
Applications
for large workpieces, for heavy-duty machining
Other characteristics
high-speed
X travel

2,000 mm
(78.74 in)

Y travel

1,600 mm
(62.99 in)

Z travel

1,300 mm
(51.18 in)

Rotational speed

Min.: 6,000 rpm
(37,699 rad.min-1)

Max.: 18,000 rpm
(113,097 rad.min-1)

Work feed X-axis

16,000 mm/min
(10.5 in/s)

Work feed Y-axis

16,000 mm/min
(10.5 in/s)

Work feed Z-axis

16,000 mm/min
(10.5 in/s)

Table load capacity

2,000 kg
(4,409 lb)

Tool weight (max)

30 kg
(66.1 lb)

Tool-changing time

18 s

Description

Overview
The MCD2016-5XB is a horizontal 5-axis machining center designed for multi-face indexing and simultaneous 5-axis machining of large workpieces.

Summary
The MCD2016-5XB features multi-face indexing and simultaneous 5-axis control for high-speed, high-accuracy machining of large components. It is supplied standard with a 6,000 rpm spindle for heavy-duty cutting of workpieces up to 2.3 m in diameter and up to 2,000 kg payload. The machine uses 0.1 µm scale feedback and thermal stability measures, including the Makino Thermal Stabilizer (standard) and an optional Thermal Chamber, to maintain accuracy during long continuous runs. A- and B-axes offer 0.0001-degree indexing for precise multi-face machining and simultaneous 5-axis operations.

Technical Specifications (metric)
Pallet: 1800 X 1000 mm
X: 2000 mm Y: 1600 mm Z: 1300 mm

  • A-Axis: -110° to +20°
  • B-Axis: +/-225°
  • C-Axis: None
  • Spindle RPM: 6,000 rpm (4K, 8K, 15K, 18K optional)
  • Rapid Traverse: 16,000 mm/min
  • Cutting Feedrate: 16,000 mm/min
  • Maximum Workpiece: 1100 mm x 2000 mm x 640 mm (with limitations)
  • Maximum Payload: 2,000 kg
  • ATC Capacity: 30 (60, 99, 120 optional)
  • Tool to Tool: 18 sec
  • Maximum Tool Diameter: 300 mm
  • Maximum Tool Weight: 30 kg

Technical Specifications (imperial)
Pallet: 70.9" X 39.4"
X: 78.7" Y: 63.0" Z: 51.2"

  • A-Axis: -115° to +20°
  • B-Axis: +/-225°
  • C-Axis: None
  • Spindle RPM: 6,000 rpm (4K, 8K, 15K, 18K optional)
  • Rapid Traverse: 630 IPM
  • Cutting Feedrate: 630 IPM
  • Maximum Workpiece: 43.3" x 78.7" x 25.2" (with limitations)
  • Maximum Payload: 4,400 lbs
  • ATC Capacity: 30 (60, 99, 120 optional)
  • Tool to Tool: 18 sec
  • Maximum Tool Diameter: 11.8"
  • Maximum Tool Weight: 66.1 lbs

Technical Specifications
  • Model: MCD2016-5XB
  • Machine type: Horizontal Machining 5-Axis
  • Standard spindle: 6,000 rpm (optional 4K, 8K, 15K, 18K)
  • Scale feedback: 0.1 µm
  • Thermal control: Makino Thermal Stabilizer (standard) and Thermal Chamber (optional)
  • Axes indexing accuracy: 0.0001-degree indexing on A and B axes
  • Workpiece capacity: up to 2.3 m diameter and payload up to 2,000 kg
  • ATC: 30 tools standard, optional 60/99/120
  • Tool change time: 18 seconds (tool-to-tool)
