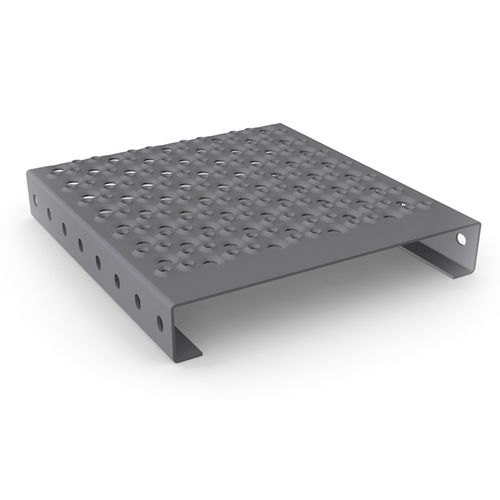

Galvanised steel grating Formstep N

aluminumstainless steelsheet metal

Product information
Small perforations are punched upwards and larger perforations punched downwards, providing the plank with stability, self-drainage and anti-slip properties suitable for outdoor use. Recommended for steps, gangways, platforms, machine operator stations and scaffold boards.

Technical data
Material | Sheet thickness (mm) | Slip class
Raw / hot-dip galvanised steel [DD11] | 2.0 / 2.5 / 3.0 | R12
Sendzimir galvanised steel [DX51] | 2.0 / 2.5 / 3.0 | R12
Aluminium [AIMg3] | 2.5 / 3.0 | R12
Stainless steel [1.4301] | 2.0 | R11
Preferred widths | 120 / 180 / 240 / 300 / 360 / variable
Preferred heights | 40 / 50 / 75 / 100 / other heights on request
Lengths | max. 6,000 mm
Length divider | 40 mm
Special sizes or materials available on request. All dimensions in mm.

Accessories / Fixing clips

• BPR Flange: Clamp connection with cage nut and M8 countersunk head bolt.
• BPR Cast metal washer with recessed hole: Upper fastening component for Formstep N and Formstep 06, and all Stepclair and Airstep versions.
• BPR Fast fixing: Clamp connection with M8 countersunk head bolt.
• BPR Universal clamp: Cast metal clamp for assembling from below, available in various versions.
• BPR Support clip: Supporting clamp connection preassembled with M8 countersunk head bolt.

References

• Stairway, Speyer
• Witzig and Frank

Characteristics / Technical specifications

• Perforation pattern: small perforations punched upwards and larger perforations punched downwards for stability and self-drainage.
• Anti-slip properties suitable for outdoor use.
• Recommended applications: steps, gangways, platforms, machine operator stations, scaffold boards.
• Available materials: Raw / hot-dip galvanised steel (DD11); Sendzimir galvanised steel (DX51); Aluminium (AIMg3); Stainless steel (1.4301).
• Sheet thicknesses: 2.0 / 2.5 / 3.0 mm (varies by material; stainless steel 2.0 mm).
• Slip classes: R12 for most materials; R11 for stainless steel.
• Preferred widths: 120 / 180 / 240 / 300 / 360 mm (variable).
• Preferred heights: 40 / 50 / 75 / 100 mm (other heights on request).
• Maximum length: 6,000 mm; length divider: 40 mm.
• Special sizes and materials available on request. All dimensions in mm.
