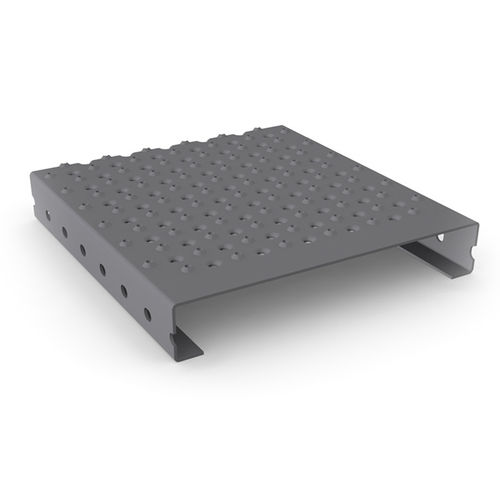

Galvanised steel grating Stephuit N

aluminumstainless steelnon-slip

Product information
A perforated profile plank suitable for a wide range of applications. The surface geometry provides anti-slip properties, making the product appropriate for industrial walkways, stair treads and public access areas where small perforations are required.

Technical data
Dimensions (all data in mm)

Material | Sheet Thickness | Slip class
Raw / hot-dip galvanised steel [DD11] | 2,0 / 2,5 / 3,0 | R13
Sendzimir galvanised steel [DX51] | 2,0 / 2,5 / 3,0 | R13
Aluminium [AIMg3] | 2,5 / 3,0 | R13
Stainless steel [1.4301] | 2,0 | -

Preferred widths: 182 / 240 / 298 / 356 variable
Preferred heights: 40 / 50 / 75 / 100 (other heights on request)
Lengths: max. 6.030 mm
Length divider: 45

Special sizes or materials available on request.

Accessories / Fixing clips

• BPR Flange — Clamp connection with cage nut and M8 countersunk head bolt.
• BPR Fast fixing — Clamp connection with M8 countersunk head bolt.
• BPR Universal clamp — Cast metal clamp for assembling from below, available in various versions.
• BPR Support clip — Supporting clamp connection preassembled with M8 countersunk head bolt.

Characteristics / technical specifications

• Type: perforated profile plank with anti-slip surface.
• Recommended uses: industrial walkways, stair treads and public access areas.
• Materials available: Raw / hot-dip galvanised steel (DD11), Sendzimir galvanised steel (DX51), Aluminium (AIMg3), Stainless steel (1.4301).
• Sheet thicknesses: 2,0 / 2,5 / 3,0 mm (material-dependent; stainless steel 2,0 mm; aluminium 2,5 / 3,0 mm).
• Slip resistance: R13 (for most material variants).
• Preferred widths (mm): 182, 240, 298, 356 (variable).
• Preferred heights (mm): 40, 50, 75, 100 (other heights on request).
• Maximum length: 6.030 mm; Length divider: 45 mm.
• Special sizes and materials available on request.
