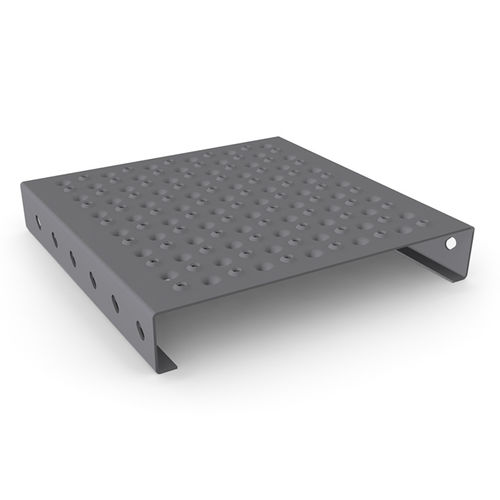

Aluminum grating Tolhuit N

stainless steelgalvanised steelrugged

Product information
A plank with small perforations stamped upwards and large perforations stamped downwards. Serrations provide an anti-slip surface. Suitable for indoor and outdoor use on stairway installations, platforms and gangways.

Technical data
Material | Sheet thickness | As class
Raw / hot-dip galvanised steel [DD11] | 2.0 / 2.5 / 3.0 | R12
Sendzimir galvanised steel [DX51] | 2.0 / 2.5 / 3.0 | R12
Aluminium [AIMg3] | 2.5 / 3.0 | R12
Stainless steel [1.4301] | 2.0 | R12
Preferred widths | 180 / 240 / 300 / 330 / variable
Preferred heights | 40 / 50 / 75 / 100 / other heights on request
Lengths | max. 6.030 mm
Length divider | 46
Special sizes or materials on request. Stored sizes according to stock list. All data in mm. *Produced in France.

Accessories / Fixing clips

• BPR Flange: Clamp connection with cage nut and M8 countersunk head bolt.
• BPR Hook fixing: With countersunk head bolt, hook compressed with collar.
• BPR Fast fixing: Clamp connection with M8 countersunk head bolt.
• BPR Screw connection: M8 x 20 special bolt with washers and self-locking nuts.
• BPR Setztechnik closed surfaces: Includes a drilling of ∅ 13 mm in the profile.
• BPR Universal clamp: Cast metal clamp for assembling from below, available in various versions.

References

• Bridge, Montceau
• Bridge, Saint Etienne

Characteristics / Technical specifications

• Model name: Tolhuit N
• Applications: stairway installations, platforms and gangways; indoor and outdoor use
• Anti-slip features: serrations plus perforation pattern (small upwards, large downwards)
• Materials available: Raw / hot-dip galvanised steel (DD11); Sendzimir galvanised steel (DX51); Aluminium (AIMg3); Stainless steel (1.4301)
• Sheet thickness options: 2.0 / 2.5 / 3.0 mm (varies by material; stainless steel 2.0 mm listed)
• As class: R12
• Preferred widths: 180, 240, 300, 330 mm or variable
• Preferred heights: 40, 50, 75, 100 mm (other heights on request)
• Maximum length: 6.030 mm
• Length divider: 46
• All dimensions in mm; special sizes or materials available on request; some production in France
