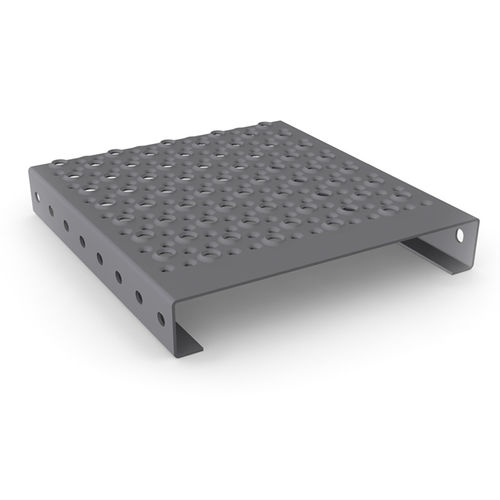

Galvanised steel grating Formstep O4

aluminumstainless steelsheet metal

Product information
Perforated profile plank designed to improve slip resistance by embossing large perforations upwards and small perforations downwards. Suitable for industrial walkways, stair treads and platform surfaces.

Technical data
Material | Sheet thickness (mm) | As class
Raw / hot-dip galvanised steel [DD11] | 2.0 / 2.5 / 3.0 | R12
Sendzimir galvanised steel [DX51] | 2.0 / 2.5 / 3.0 | R12
Aluminium [AIMg3] | 2.5 / 3.0 | R12
Stainless steel [1.4301] | 2.0 | R12
Preferred widths | 120 / 180 / 240 / 300 / 360 / variable
Preferred heights | 40 / 50 / 75 / 100 / other heights on request
Lengths | max. 6.000 mm
Length divider | 40 mm
Special sizes or materials available on request. All dimensions in mm.

Accessories / Fixings

• BPR Flange: clamp connection with cage nut and M8 countersunk head bolt.
• BPR Fast fixing: clamp connection with M8 countersunk head bolt.
• BPR Universal clamp: cast metal clamp for assembly from below, available in several versions.

Characteristics / Technical specifications

• Product type: profile planking / plank with embossed perforations to enhance anti-slip properties.
• Slip resistance: large perforations embossed upwards and small perforations embossed downwards; classification R12.
• Available materials: Raw / hot-dip galvanised steel (DD11), Sendzimir galvanised steel (DX51), Aluminium (AIMg3), Stainless steel (1.4301).
• Available sheet thicknesses (mm): 2.0; 2.5; 3.0 (varies by material).
• Preferred widths (mm): 120, 180, 240, 300, 360 (variable widths available).
• Preferred heights (mm): 40, 50, 75, 100 (other heights on request).
• Maximum length: 6.000 mm; length divider: 40 mm.
• Special sizes or alternative materials available on request.
• Units: all dimensional data given in mm.
