Galvanised steel grating Formstep O5

aluminumstainless steelsheet metal

Product information

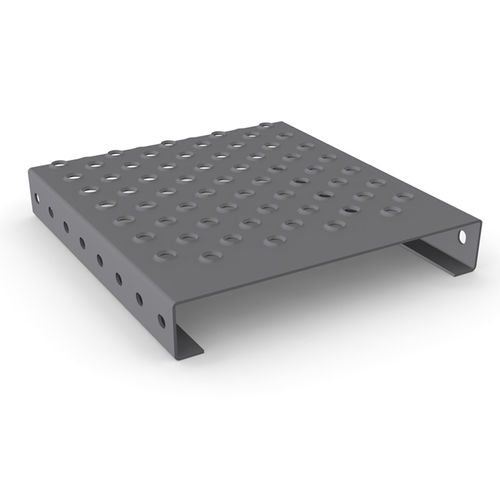

The Formstep O5 is an anti-slip perforated plate designed for industrial interior applications. Large perforations are embossed upward while smaller holes face downward, enhancing slip resistance where a pronounced grip is required.

Technical data
Dimensions
Material | Sheet thickness | Slip class
Raw / hot-dip galvanised steel [DD11] | 2.0 / 2.5 / 3.0 mm | R12
Sendzimir galvanised steel [DX51] | 2.0 / 2.5 / 3.0 mm | R12
Aluminium [AIMg3] | 2.5 / 3.0 mm | R12
Stainless steel [1.4301] | 2.0 mm | R12
Preferred widths | 120 / 180 / 240 / 300 / 360 mm | variable
Preferred heights | 40 / 50 / 75 / 100 mm | other heights on request
Lengths | max. 6.000 mm
Length divider | 40 mm
Special sizes or materials available on request. All dimensions in mm.

Accessories / Fixing clips

• BPR Flange — Clamp connection with cage nut and M8 countersunk head bolt.
• BPR Fast fixing — Clamp connection with M8 countersunk head bolt.
• BPR Universal clamp — Cast metal clamp for assembly from below, available in various versions.
• BPR Support clip — Support clamp connection preassembled with M8 countersunk head bolt.

References
Bridge, Albstadt (example reference project).

Characteristics / Technical specifications

• Product: Formstep O5
• Type: Perforated industrial plate with embossed perforations for improved slip resistance
• Slip resistance class: R12
• Available materials: DD11, DX51, AIMg3, 1.4301
• Sheet thicknesses (mm): 2.0 / 2.5 / 3.0 (varies by material)
• Preferred widths (mm): 120 / 180 / 240 / 300 / 360
• Preferred heights (mm): 40 / 50 / 75 / 100 (other heights on request)
• Maximum length: 6000 mm
• Length divider: 40 mm
• Special dimensions and materials on request
