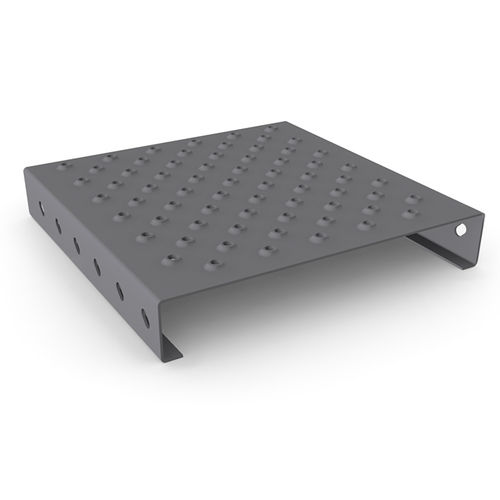

Galvanised steel grating Toltop N

steelstainless steelperforated sheet metal

Product information
This plank provides a slip-resistant walking surface while preventing small parts from falling through, enabling safe walking and standing at height. Toltop N is intended for industrial and public applications, preferably for indoor use.

Technical data
Dimensions
Material | Sheet thickness | Class
Raw / hot-dip galvanised steel [DD11] | 2.0 / 2.5 / 3.0 mm | -
Sendzimir galvanised steel [DX51] | 2.0 / 2.5 / 3.0 mm | -
Aluminium [AIMg3] | 2.5 / 3.0 mm | -
Stainless steel [AISI 304L] | 2.0 mm | -
Preferred widths: 180 / 240 / 300 mm
Preferred heights: 50 / 75 / 100 mm (other heights on request)
Lengths: max. 4,002 mm
Length divider: 46 mm
Special sizes or materials on request. All data in mm.

Accessories / Fixing clips

• BPR Screw connection: M8 x 20 special bolt with washers and self-locking nuts.
• BPR Universal clamp: Cast metal clamp for assembly from below; available in several versions.

Features / Technical specifications

• Slip-resistant surface that limits the fall-through of small parts.
• Recommended use: safe walking and standing at heights; preferably indoor industrial and public applications.
• Available materials: Raw / hot-dip galvanised steel (DD11), Sendzimir galvanised steel (DX51), Aluminium (AIMg3), Stainless steel (AISI 304L).
• Sheet thicknesses by material: 2.0 / 2.5 / 3.0 mm (steel); Aluminium 2.5 / 3.0 mm; Stainless steel 2.0 mm.
• Preferred widths: 180, 240, 300 mm.
• Preferred heights: 50, 75, 100 mm (other heights on request).
• Maximum length: 4,002 mm; length divider: 46 mm.
• All dimensions in mm; special sizes and materials available on request; stocked sizes according to stock list.
