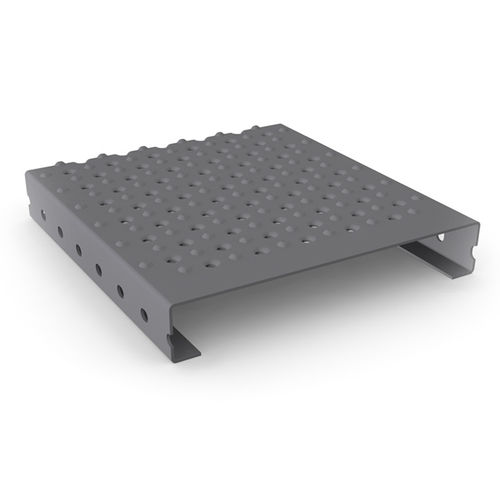

Galvanised steel grating Stephuit O1

aluminumstainless steelsheet metal

Product information
Stephuit O1 features upward-facing embossing with no sharp edges while providing effective anti-slip performance. It is suitable for industrial and public market sectors where a non-slip metal surface is required.

Technical data
Dimensions
Material | Sheet thickness | Slip class
Raw / hot-dip galvanised steel [DD11] | 2.0 / 2.5 / 3.0 | R10
Sendzimir galvanised steel [DX51] | 2.0 / 2.5 / 3.0 | R10
Aluminium [AIMg3] | 2.5 / 3.0 | -
Stainless steel [1.4301] | 2.0 | -
Preferred widths | 182 / 240 / 298 / 330 / 356 / variable
Preferred heights | 40 / 50 / 75 / 100 (other heights on request)
Lengths | max. 6.030 mm
Length divider | 45 mm
Special sizes or materials available on request. All data in mm.

Accessories / Fixing clips

• BPR Flange - Clamp connection with cage nut and M8 countersunk head bolt.
• BPR Fast fixing - Clamp connection with M8 countersunk head bolt.
• BPR Universal clamp - Cast metal clamp for assembly from below, available in various versions.
• BPR Support clip - Supporting clamp connection preassembled with M8 countersunk head bolt.

Characteristics / technical specifications

• Model: Stephuit O1
• Brand: MEISER
• Embossing: upward-facing embossing with no sharp edges
• Materials: Raw / hot-dip galvanised steel (DD11), Sendzimir galvanised steel (DX51), Aluminium (AIMg3), Stainless steel (1.4301)
• Sheet thicknesses (mm): Steel DD11/DX51: 2.0 / 2.5 / 3.0; Aluminium: 2.5 / 3.0; Stainless steel: 2.0
• Slip resistance class: R10 (for steel variants)
• Preferred widths (mm): 182, 240, 298, 330, 356 (variable)
• Preferred heights (mm): 40, 50, 75, 100 (other heights on request)
• Maximum length: 6.030 mm
• Length divider: 45 mm
• All dimensions in mm. Special sizes and materials on request.
