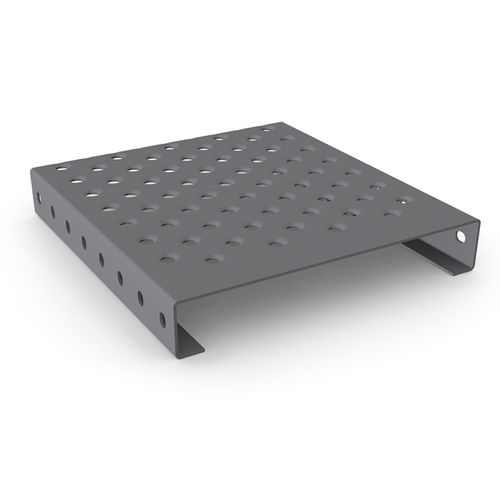

Galvanised steel grating Formstep O6

sheet metalaluminumstainless steel

Product information
Formstep O6 is a rack decking panel with a very smooth top surface that allows light transmission. It is designed for applications such as shelving and rack decking where trolleys run quietly. The panel permits dust passage and provides ventilation; rubber studs can be inserted to increase slip resistance.

Technical data
Dimensions (all values in mm):
Material — Sheet thickness — Note
Raw / hot-dip galvanised steel [DD11] — 2.0 / 2.5 / 3.0 — -
Sendzimir galvanised steel [DX51] — 2.0 / 2.5 / 3.0 — -
Aluminium [AIMg3] — 2.5 / 3.0 — -
Stainless steel [1.4301] — 2.0 — -
Preferred widths — 120 / 180 / 240 / 300 / 360 — variable
Preferred heights — 40 / 50 / 75 / 100 — other heights on request
Maximum length — 6000 mm
Length divider — 40 mm
Special sizes or materials available on request.

Accessories / Fixing clips (selection)

• BPR Flange — clamp connection with cage nut and M8 countersunk head bolt.
• BPR Fast fixing — clamp connection with M8 countersunk head bolt.
• BPR Universal clamp — cast metal clamp for assembling from below, available in several versions.
• BPR Support clip — supporting clamp connection preassembled with M8 countersunk head bolt.

Characteristics / Technical specifications

• Product name: Formstep O6
• Top surface: very smooth, allows light transmission
• Typical application: rack decking, shelving, walkable surfaces for trolleys
• Ventilation and dust passage ensured
• Option to insert rubber studs for enhanced slip resistance
• Materials available: Raw / hot-dip galvanised steel (DD11); Sendzimir galvanised steel (DX51); Aluminium (AIMg3); Stainless steel (1.4301)
• Sheet thicknesses (mm): 2.0 / 2.5 / 3.0 (varies by material)
• Preferred widths (mm): 120 / 180 / 240 / 300 / 360 (variable)
• Preferred heights (mm): 40 / 50 / 75 / 100 (other heights on request)
• Maximum length: 6000 mm
• Length divider: 40 mm
