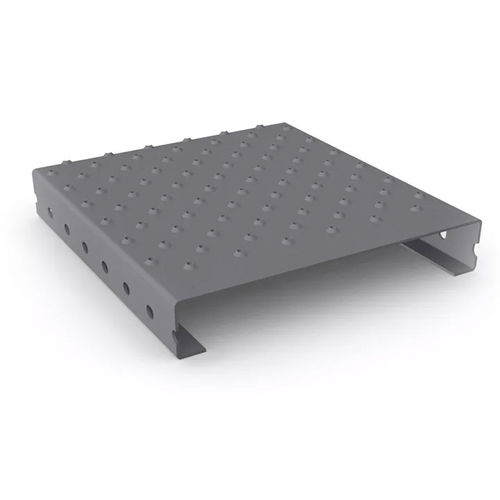

Aluminum grating Aderstep N

galvanised steelstainless steelsheet metal

Product information
Aderstep N is a slip-resistant plank with an almost closed surface that prevents small parts from falling through. The opaque grating provides a secure walking and standing surface at height. Suitable for industrial and public areas, preferably for indoor use.

Technical data
Dimensions
Material | Sheet thickness | Slip class
Raw / hot-dip galvanised steel [DD11] | 2.0 / 2.5 / 3.0 mm | R13
Sendzimir galvanised steel [DX51] | 2.0 / 2.5 / 3.0 mm | R13
Aluminium [AIMg3] | 2.5 / 3.0 mm | R13
Stainless steel [1.4301] | 2.0 mm | R12
Preferred widths | 240 / 298 / 330 mm (variable)
Preferred heights | 40 / 50 / 75 / 100 mm (other heights on request)
Lengths | max. 6.030 mm
Length divider | 45 mm
Special sizes or materials on request. All dimensions in mm.

Accessories / Fixing clips

• BPR Setztechnik geschlossene Oberflächen (includes a ∅ 13 mm hole in the profile)
• BPR Universal clamp (cast metal clamp for assembly from below; available in several versions)

Characteristics / technical specifications

• Product: Aderstep N
• Slip-resistant plank with nearly closed surface to prevent small parts falling through
• Opaque surface for comfortable walking and standing at height
• Recommended for indoor use; suitable for industrial and public areas
• Available materials: Raw / hot-dip galvanised steel [DD11]; Sendzimir galvanised steel [DX51]; Aluminium [AIMg3]; Stainless steel [1.4301]
• Sheet thicknesses (mm): DD11 / DX51: 2.0 / 2.5 / 3.0; AIMg3: 2.5 / 3.0; 1.4301: 2.0
• Slip resistance class: typically R13 (R12 for stainless steel 1.4301)
• Preferred widths (mm): 240 / 298 / 330 (variable)
• Preferred heights (mm): 40 / 50 / 75 / 100 (other heights on request)
• Maximum length (mm): 6030
• Length divider (mm): 45
