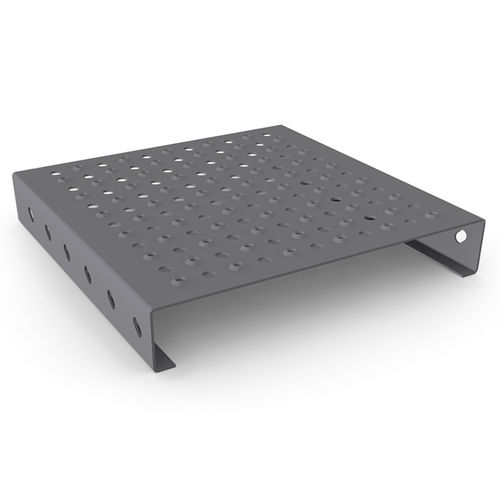

Galvanised steel grating Toldeco 10

sheet metalaluminumstainless steel

Product information
This plank type has almost the same properties as the Toldeco 8. The 10 mm hole diameter improves liquid drainage. Small upward‑punched holes with additional serrations provide targeted anti‑slip performance. Suitable for indoor and outdoor stair treads, platforms and gangways.

Technical data
Dimensions
Material | Sheet thickness | As class
Raw / hot‑dip galvanised steel [DD11] | 2.0 / 2.5 / 3.0 | R11
Sendzimir galvanised steel [DX51] | 2.0 / 2.5 / 3.0 | R11
Aluminium [AIMg3] | 2.5 / 3.0 | R11
Stainless steel [AISI 304L] | 2.0 | R11
Preferred widths | 180 / 240 / 300 / 330 / 356 / variable
Preferred heights | 50 / 75 / 100 / other heights on request
Lengths | max. 6.030 mm
Length divider | 46
Special sizes or materials on request.
All data in mm.
* Produced in France.

Accessories / Fixing clips

• BPR Flange – Clamp connection with cage nut and M8 countersunk head bolt.
• BPR Fast fixing – Clamp connection with M8 countersunk head bolt.
• BPR Screw connection – M8 x 20 special bolt with washers and self‑locking nuts.
• BPR Universal clamp – Cast metal clamp for assembly from below, available in various versions.

Characteristics / technical specifications

• Model: Toldeco 10
• Hole diameter: 10 mm for improved liquid drainage
• Punch type: small upward‑punched holes with additional serrations for anti‑slip
• Slip resistance class: R11
• Materials and sheet thicknesses: Raw / hot‑dip galvanised steel (DD11): 2.0 / 2.5 / 3.0 mm; Sendzimir galvanised steel (DX51): 2.0 / 2.5 / 3.0 mm; Aluminium (AIMg3): 2.5 / 3.0 mm; Stainless steel (AISI 304L): 2.0 mm
• Preferred widths (mm): 180, 240, 300, 330, 356 (variable)
• Preferred heights (mm): 50, 75, 100 (other heights on request)
• Maximum length: 6.030 mm
• Length divider: 46
• Special sizes or materials available on request
• All dimensions in mm
