LoRaWAN sensor hub UC50 series

NB-IoTwith RS-485 interfaceModbus RTU

Overview
The UC50x series is a field‑deployable, multi‑interface controller for connecting and managing environmental and industrial sensors in harsh outdoor conditions. It supports GPIO, analog inputs, RS232/RS485, SDI‑12 and offers IP68 protection, multiple power options (battery, solar, DC) and quick NFC configuration. The device provides local storage, retransmission and integration options for cloud platforms to ensure reliable data acquisition and traceability.

Key Features

• Multiple industrial interfaces: GPIO, AI (analog input), RS232/RS485, SDI‑12
• SDI‑12 support for environmental instruments (weather, hydrology, agriculture)
• Internal and optional external antenna (external antenna available for LoRaWAN® variants)
• IP68 enclosure and M12 connector for water, corrosion and vibration resistance
• Flexible power: rechargeable or replaceable batteries, optional solar and DC input
• Threshold and change reporting, alerts and cumulative reporting to save power (cellular variants)
• Easy configuration via NFC (mobile ToolBox app) and USB Type‑C console
• Data retransmission and local storage for reliable delivery and traceability

Interfaces & I/O

• GPIO: 2 × GPIO, software configurable as digital input/output or pulse counter (recommended input frequency ≤ 4000 Hz)
• Analog inputs: 2 × 12‑bit AI, selectable 4–20 mA or 0–10 V; built‑in conversion to engineering values
• Serial: 1 × RS232 or RS485 (software switchable), baud 1200–115200, supports transparent mode and Modbus RTU (RS485)
• SDI‑12: 1 × SDI‑12 (v1.4), transparent mode for environmental sensors
• Power rails: 2 × 3.3 V and 2 × switchable 5/9/12 V (configurable power‑on time)

Wireless & Network Options

• LoRaWAN® version: supports multiple regional bands (CN470 / IN865 / EU868 / RU864 / US915 / AU915 / KR920 / AS923 variants), OTAA/ABP, UC501: Classes A/C, UC502: Class A
• Cellular versions (NB‑IoT / Cat M): multi‑band options with TCP/UDP/MQTT support and cumulative reporting for power efficiency

Ruggedization & Installation

• Ingress protection: IP68 (tested 1 m depth for 7 days)
• Connector: M12 A‑coded male for field cabling
• Mounting: wall or pole mounting; internal or optional external antenna (SMA connector on EA version)

Power Options & Storage

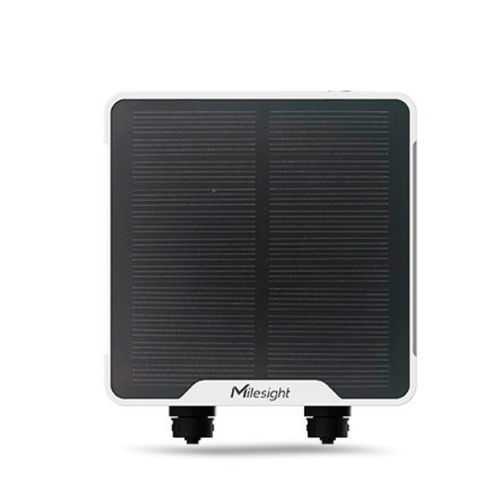

• UC501 example: 2 × 2550 mAh ICR18650 rechargeable batteries; optional embedded solar (6 V, 1.7 W); DC 5–24 V via M12
• UC502 example: 3 × 9000 mAh replaceable ER26500 batteries; DC 5–24 V via M12
• Data storage: LoRaWAN® up to ~600 records; LTE/cellular up to ~10,000 records; local records retained for traceability

Reliability & Cloud

• Support for retransmission and cumulative reporting to improve delivery reliability and reduce transmission costs
• Integrates with cloud platforms for visualization, alarms, scheduled reports and remote management

Configuration & Operation

• Configuration methods: NFC (mobile ToolBox app), USB Type‑C console and LoRaWAN® downlink
• NFC workflow: install ToolBox app → enable NFC and tap device → verify credentials → apply configuration

Typical Applications

• Meter reading (pulse counting for gas/water/electricity) via GPIO
• Environmental monitoring and data acquisition via SDI‑12 and analog inputs
• Modbus to LoRaWAN® conversion for serial field devices
• Water level, distance/level monitoring, weather stations, agriculture sensors, HVAC and industrial IoT deployments

Technical specifications

• Model / Series: UC50x (UC501, UC502 variants)
• Wireless (LoRaWAN®): supported bands CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923; example Tx 16 dBm @868 MHz; sensitivity up to −137 dBm @300 bps; OTAA/ABP support
• Cellular: multi‑band Cat M1 / NB2; protocols TCP/UDP/MQTT/AWS; cumulative reporting
• Interfaces: 2 × M12 A‑coded; 2 × GPIO; 1 × RS232/RS485; 2 × AI (12‑bit); 1 × SDI‑12 (v1.4)
• Power outputs: 2 × 3.3 V; 2 × switchable 5/9/12 V (configurable)
• Power examples: UC501 — 2 × 2550 mAh ICR18650 + optional solar; UC502 — 3 × 9000 mAh ER26500; DC 5–24 V via M12
• Storage: LoRaWAN® ~600 records; cellular up to ~10,000 records
• Retransmission: supported for reliable delivery
• Operating temperature: UC501 −20 °C to 60 °C; UC502 −30 °C to 70 °C
• Ingress protection: IP68
• Dimensions: 116 × 116 × 45.5 mm (excluding connectors)
• Mounting: wall or pole; USB Type‑C for console; LED indicators and internal button
• Advanced features: threshold/change alarms, multicast (UC501), cumulative reporting, NFC configuration
• Approvals: CE, FCC, ISED (examples); Environmental: RoHS
