Pt100 humidity and temperature sensor TS60 series

USB4GM12 connector

Overview
TS60x is a 4G temperature and humidity sensor designed for reliable cold-chain monitoring during storage and transport of food and pharmaceuticals. It delivers continuous, traceable measurements and event alerts to reduce loss, ensure compliance and protect product quality.

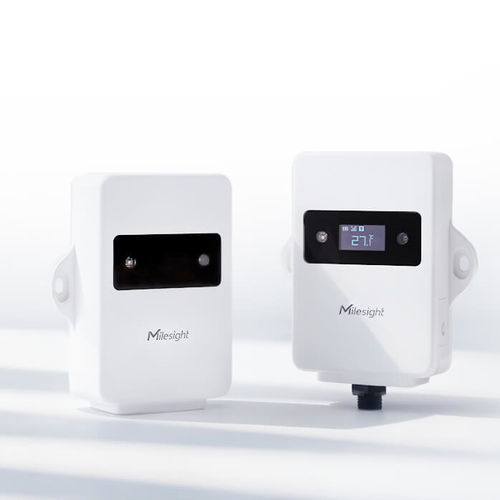

Product variants

• TS601 — internal sensing version with status LED.
• TS602 — external-probe version with 0.96-inch OLED display and 5-pin M12 connector supporting TH / DS18B20 / PT100 probes.

Key capabilities & features

• Cellular connectivity: LTE Cat.1 (4G) for wide-area remote monitoring and real-time alerts.
• Multi-parameter sensing: temperature, humidity, ambient light (door-open detection), tilt/position (abnormal motion detection) and cell-based location reporting.
• IP67-rated multi-layer sealing to prevent condensation and moisture intrusion for cold-chain operation.
• Long-life, replaceable battery bay (typical up to ~4.8 years under specified reporting conditions).
• Flexible installation: cable ties, 3M tape, wall screws or magnetic mounting (magnetic accessory optional).
• Multiple probe support (TS602): PT100, DS18B20 and TH-type probes for air or product-core measurements.
• Smart reporting: routine aggregated data for endurance and immediate high-priority alerts for excursions, door events or tilt incidents.
• One-tap log retrieval to instantly download stored device logs.
• Flight Mode scheduling to suspend cellular transmissions during air transport (aviation compliance workflow).
• NFC-based configuration for quick setup of thresholds and intervals without opening the enclosure.
• Local data storage with retransmit capability after connectivity loss.

Cold chain-specific advantages

• Food-contact-safe housing (ABS+PC) with recommended mounting guidance for food applications.
• Dedicated probe options and accessories for food and pharmaceutical measurements (food-grade PT100, thermal buffer bottles, glass-bead buffers).
• Light sensor for door-open detection and event triggering.
• Tilt sensor to detect drops, impacts or abnormal motion and generate alerts.
• Cell-based positioning to help track asset movement and prepare receiving/handover operations.

Accessories & probe ecosystem

• Optional probes: DS18B20, PT100 variants (regular/food/industrial/low-temp), thermal buffer bottles and glass-bead buffers.
• Mounting accessories: brackets, magnetic nuts, 3M tape kits and other cold-chain fittings matched to TS602.

Technical specifications

• Model / commercial name: TS60x (TS601 = internal sensing; TS602 = external probe with display)
• Brand: Milesight
• Wireless technology: LTE Cat.1 (4G)
• LTE (FDD) bands (EMEA/Australia/NZ): B1/B3/B5/B7/B8/B20/B28
• SIM: 1 × Micro SIM (3FF) slot, 1.8V/3V
• Application modes: TCP / UDP / MQTT / AWS / Milesight Development Platform
• Temperature sensor (internal): operating range -35 °C to +70 °C; typical accuracy: ±0.3 °C (-35 °C to 0 °C), ±0.2 °C (0 °C to 65 °C), ±0.5 °C (65 °C to 70 °C); resolution ±0.1 °C
• Humidity sensor: range 0% to 100% RH; typical accuracy ±2% RH; resolution ±0.1% RH
• Light sensor: 0 to 600 Lux; status: Light/Dark (used for door-open detection)
• Device position (tilt): Normal / Tilt; threshold range -90° to +90° on X/Y/Z axes
• Base-station (cell-based) positioning: reports longitude/latitude; typical deviation ~1 km on urban main roads (max up to ~5 km depending on conditions)
• Screen / indicator: TS602: 0.96-inch OLED display; TS601: status LED (1 × indicator)
• Buttons & interfaces: 1 × Reset/Power button; NFC setup supported; Type-C port for service power
• Software & configuration: NFC, USB, Power Button; mobile app via NFC for commissioning; min. packet intervals: 30 min @ temp ≤ 0 °C; 15 min @ temp > 0 °C (configurable)
• Advanced features: threshold alarms, data storage (up to 5,000 entries), retransmission after connectivity loss, one-tap log retrieval, flight mode scheduling
• Power: 2 × 2500 mAh CR18505 Li-MnO2 batteries (internal)
• Battery life examples (typical scenario: 6 reports/day, per report includes 8 package samples with 30-min collection interval, positioning disabled, -20 °C): MQTT/TCP ≈ 4.8 years; AWS ≈ 3.9 years; UDP ≈ 5.1 years (values vary by configuration and environment)
• Operating temperature: -35 °C to +70 °C
• Relative humidity (device): 0%–95% non-condensing
• Ingress protection: IP67
• Housing & color: ABS + PC (food-grade), white
• Weight (with batteries): TS601 ≈ 192 g; TS602 ≈ 200 g
• Dimensions: 112 × 72 × 29 mm
• Installation methods: cable-tie, 3M tape, wall-screw, magnetic mounting (optional)
