Vehicle fleet tracking tracker AT101

battery-operatedGPSwireless

Overview

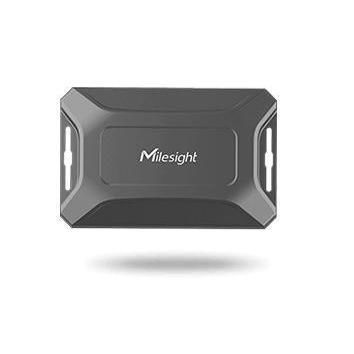

Milesight AT101 is an outdoor LoRaWAN® asset tracker providing accurate geolocation via GNSS and Wi‑Fi AP MAC scanning. It integrates tilt and temperature sensing, supports geofencing and multiple reporting modes, and is designed for long-term field deployment with replaceable high-capacity batteries and rugged IP67 / IK09 housing.

Key features

• Accurate GNSS positioning (GPS/GLONASS/Galileo/BeiDou used simultaneously).
• Wi‑Fi AP MAC scanning to assist positioning where GNSS is weak (BSSID, RSSI).
• Geofencing with alerts on leaving/returning defined zones.
• Work modes: Motion (stop/move tracking, trajectory), Timing (up to 5 timer points), Periodic (reporting intervals 1–1440 minutes).
• Tilt detection and tamper button for installation and anti‑theft monitoring.
• Temperature sensor (NTC): -40 to 125 °C, 0.1 °C resolution.
• Rugged design: IP67 ingress protection and IK09 impact resistance.
• Configuration via NFC and Bluetooth® 5.3; protections against malicious Bluetooth access (password retry delays, logging).
• Replaceable 4 × 2700 mAh ER14505 Li‑SOCl2 batteries; multi‑year life in low‑reporting scenarios.
• LoRaWAN®: OTAA/ABP Class A, high sensitivity, retransmission support and on‑device storage for up to 1,000 records.
• Compatible with cloud/device management platforms for visualization, triggers and mobile apps.

Work modes

• Motion Mode: reports on movement, records trajectory; supports increased reporting interval while moving.
• Timing Mode: asset status for fixed time periods; up to 5 timer points.
• Periodic Mode: customizable periodic reporting (1–1440 minutes).

Applications

• Livestock and farm asset tracking
• Patrol and community vehicles
• Construction equipment and waste bin tracking
• Warehouse asset and vehicle management
• Golf carts and small vehicle fleets

Technical specifications (summary)

• Model: AT101
• Brand: Milesight
• Wireless: LoRaWAN® (OTAA/ABP Class A); multi‑region bands (e.g. CN470/EU868/US915 etc.); Tx power up to 20 dBm; sensitivity ~ -137 dBm.
• GNSS: GPS/GLONASS/Galileo/BeiDou simultaneously; position accuracy ≈ 5 m (clear sky); TTFF cold ~37 s, hot ~1 s.
• Wi‑Fi positioning: scans AP BSSID/RSSI (802.11b/g/n 2.4 GHz).
• Sensors: tilt (MEMS accelerometer), tamper button, temperature (NTC, -40 to 125 °C, 0.1 °C resolution).
• Power: 4 × ER14505 (2700 mAh) replaceable batteries; battery life depends on reporting frequency (examples: 2 reports/day → 15+ years; 10/day → ~8 years; hourly → ~4 years at 25 °C).
• Environmental: Operating -30 °C to +70 °C; RH 0–95% non‑condensing.
• Mechanical: PC enclosure, black; IP67, IK09; 110 × 70 × 30 mm; 202 g (with batteries).
• Installation: wall screws, 3M tape, cable ties.
• Storage & reliability: on‑device storage up to 1,000 records; retransmission on connectivity recovery.
• Approvals: CE, FCC, RoHS.
