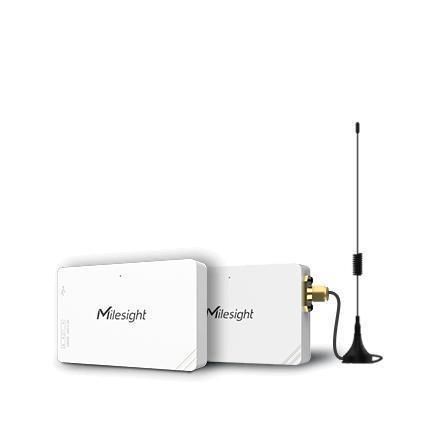

Communication gateway UC100

telemetryIoTRS-485

Overview
Milesight UC100 is a compact Modbus RS485 to LoRaWAN® converter designed to read Modbus RTU devices and transmit site data over LoRaWAN®. It supports local USB Type‑C configuration, remote configuration via LoRa downlink, autonomous execution of IF‑THEN rules when the network is unavailable, Milesight D2D roles (Controller & Agent) for direct device‑to‑device interactions, and FUOTA for remote firmware updates.

Key features

• Converts Modbus RTU (RS485) devices to LoRaWAN®
• Data collection: supports reading up to 64 registers
• Local & remote configuration: USB Type‑C local config and LoRa downlink remote config
• Autonomous operation: executes IF‑THEN commands locally during network outages
• Intelligent Trigger System: up to 16 commands with custom trigger conditions and actions
• Milesight D2D support: functions as D2D Controller and Agent for direct device communication
• FUOTA support: Firmware Update Over‑The‑Air via LoRa® network
• Data integrity: onboard storage (historical records), data retrieval and retransmission to avoid data loss

Interfaces & Hardware

• 1 × RS485 port (3.5 mm terminal block), supports Modbus RTU and passthrough
• Connector: 2‑pin 3.5 mm terminal block for RS485
• Terminal resistor: 1 × 120 Ω resistor switch
• USB: 1 × USB Type‑C for power, local configuration and console
• Antenna: internal antenna or optional external antenna (50 Ω SMA connector)
• LED: system indicator
• Reset: internal reset button
• Power connector: 1 × 3.5 mm 2‑pin terminal block with surge and reverse‑polarity protection

Operational capabilities

• LoRaWAN® OTAA/ABP Class C operation
• Frequencies supported: CN470 / IN865 / EU868 / RU864 / US915 / AU915 / KR920 / AS923‑1/2/3/4 (region dependent)
• Tx power examples: 16 dBm (868 MHz), 22 dBm (915 MHz), 19 dBm (470 MHz)
• Sensitivity: −137 dBm @300bps
• Baud rate: 1200–115200 bps
• Advanced features: threshold alarm, change alarm, data storage (up to 800 entries), data retrieval & retransmission, IF‑THEN automation

Installation & Form factor

• Compact form factor: desktop placement or wall‑screw mounting
• Enclosure: PC+ABS, white
• Weight: approx. 32 g
• Dimensions: 70 × 45 × 13 mm (connectors excluded)

Reliability & Environmental

• Operating temperature: −20 °C to 60 °C
• Relative humidity: 0%–95% (non‑condensing)
• Ingress protection: IP30 (indoor)

Management & Integration

• Plug‑and‑play configuration and remote management via Milesight Development Platform (template provisioning, remote management, APIs/webhooks)
• FUOTA: remote firmware updates over LoRa® network

Technical specifications

• Wireless: LoRaWAN®, Milesight D2D; Antenna: internal or optional external (50 Ω SMA)
• Frequency: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923‑1/2/3/4; Mode: OTAA/ABP Class C; Sensitivity: −137 dBm @300bps; Tx Power: up to 22 dBm (region dependent)
• Data interface: 1 × RS485 (3.5 mm terminal); Baud rate: 1200–115200 bps; Protocol: Modbus RTU, Passthrough; Terminal resistor: 120 Ω switch
• Others: USB Type‑C (power/config/console); Reset button; System LED; Power: 3.5 mm 2‑pin terminal with surge and reverse‑polarity protection
• Software: USB or LoRa downlink configuration; Features: Threshold/Change alarms, Data storage (up to 800 entries), Retrieval & retransmission, IF‑THEN commands, Milesight D2D Controller & Agent, FUOTA
• Power supply: DC 5–24 V via power connector or DC 5 V / 1 A via Type‑C; Power consumption: <0.5 W; Material: PC+ABS, white; Weight: 32 g; IP: IP30; Operating temp: −20 °C~60 °C; Humidity: 0%~95% non‑condensing; Dimensions: 70 × 45 × 13 mm; Installation: desktop or wall mounting
