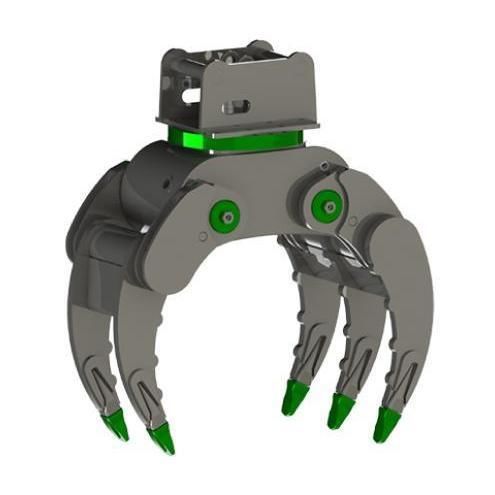

Demolition grab Alligator

waste collectionwoodfor stone

Overview
The Multipurpose Grapple (Log Grapple, Scrap Grapple, Stone Grapple) "Alligator" revolutionizes tasks from root pulling and forest clearing to demolition and waste management. Equipped with A-synchronous grip technology, it ensures efficient and precise operation across various heavy-duty tasks. Ideal for managing timber, biomass, steel and construction materials and for cleaning overgrown lands and waterways. Original prong design ensures easy penetration and secure gripping of diverse materials. Designed for durability and ease of use with a lightweight design and a 3-year warranty.

Key features

• A-synchronous grip technology for efficient and precise operation
• Original prong design for easy penetration and secure gripping
• Lightweight construction for ease of use
• 3-year warranty
• Suitable for timber, biomass, steel, construction materials
• Applications: root pulling, forest clearing, demolition, waste management, cleaning waterways
• Smart modular concept: easily upgradable with more than 100 additional functions

Tool functions

• Biomass Handling
• Building Retaining Walls
• Cleaning of Fields, Forests and Overgrown Farmland
• Removal of Large Trees, Roots & Tree Stumps
• Rock Handling & Stone Placement
• Root Pulling & Forest Clearing
• Steel & Metal Element Handling
• Steel Structure Demolition
• Timber & Log Handling
• Waste Handling, Loading & Sorting

Caractéristiques / Spécifications techniques

• MD 3.0: Machine Operating Weight: 3-6 t; Volume: 70 l / 0,09 cy; Max opening (A): 1160 mm / 45.67 in; Width (B): 460 mm / 18.11 in; Minimal Diameter (C): 150 mm / 5.91 in; Height: 750 mm / 29.53 in; Closing force: 16 kN / 3597 lbf; Arms Weight: 143 kg / 315 lbs; Total Grapple weight*: 318 kg / 701 lbs. *Total Grapple Weight does not include the connection plate.
• MD 6.0: Machine Operating Weight: 5-9 t; Volume: 150 l / 0,20 cy; Max opening (A): 1430 mm / 56.30 in; Width (B): 540 mm / 21.26 in; Minimal Diameter (C): 200 mm / 7.87 in; Height: 880 mm / 34.65 in; Closing force: 29 kN / 6519 lbf; Arms Weight: 192 kg / 423 lbs; Total Grapple weight*: 427 kg / 941 lbs. *Total Grapple Weight does not include the connection plate.
• MD 9.0: Machine Operating Weight: 8-14 t; Volume: 250 l / 0,33 cy; Max opening (A): 1680 mm / 66.14 in; Width (B): 540 mm / 21.26 in; Minimal Diameter (C): 300 mm / 11.81 in; Height: 1015 mm / 39.96 in; Closing force: 31 kN / 6969 lbf; Arms Weight: 242 kg / 534 lbs; Total Grapple weight*: 502 kg / 1107 lbs. *Total Grapple Weight does not include the connection plate.
• MD 12.0: Machine Operating Weight: 10-15 t; Volume: 300 l / 0,39 cy; Max opening (A): 1850 mm / 72.83 in; Width (B): 600 mm / 23.62 in; Minimal Diameter (C): 300 mm / 11.81 in; Height: 1260 mm / 49.61 in; Closing force: 36 kN / 8093 lbf; Arms Weight: 360 kg / 794 lbs; Total Grapple weight*: 705 kg / 1554 lbs. *Total Grapple Weight does not include the connection plate.
• MD 16.0: Machine Operating Weight: 15-20 t; Volume: 420 l / 0,55 cy; Max opening (A): 2000 mm / 78.74 in; Width (B): 700 mm / 27.56 in; Minimal Diameter (C): 300 mm / 11.81 in; Height: 1370 mm / 53.94 in; Closing force: 46 kN / 10341 lbf; Arms Weight: 560 kg / 1235 lbs; Total Grapple weight*: 1035 kg / 2282 lbs. *Total Grapple Weight does not include the connection plate.
• MD 20.0: Machine Operating Weight: 19-22 t; Volume: 560 l / 0,73 cy; Max opening (A): 2400 mm / 94.49 in; Width (B): 900 mm / 35.43 in; Minimal Diameter (C): 360 mm / 14.17 in; Height: 1560 mm / 61.42 in; Closing force: 55 kN / 12364 lbf; Arms Weight: 765 kg / 1687 lbs; Total Grapple weight*: 1465 kg / 3230 lbs. *Total Grapple Weight does not include the connection plate.
• MD 25.0: Machine Operating Weight: 21-29 t; Volume: 760 l / 0,99 cy; Max opening (A): 2400 mm / 94.49 in; Width (B): 900 mm / 35.43 in; Minimal Diameter (C): 360 mm / 14.17 in; Height: 1560 mm / 61.42 in; Closing force: 65 kN / 14613 lbf; Arms Weight: 835 kg / 1841 lbs; Total Grapple weight*: 1615 kg / 3560 lbs. *Total Grapple Weight does not include the connection plate.
• MD 30.0: Machine Operating Weight: 27-45 t; Volume: 870 l / 1,14 cy; Max opening (A): 3000 mm / 118.11 in; Width (B): 1000 mm / 39.37 in; Minimal Diameter (C): 400 mm / 15.75 in; Height: 1650 mm / 64.96 in; Closing force: 125 kN / 28101 lbf; Arms Weight: 1100 kg / 2425 lbs; Total Grapple weight*: 2500 kg / 5512 lbs. *Total Grapple Weight does not include the connection plate.
