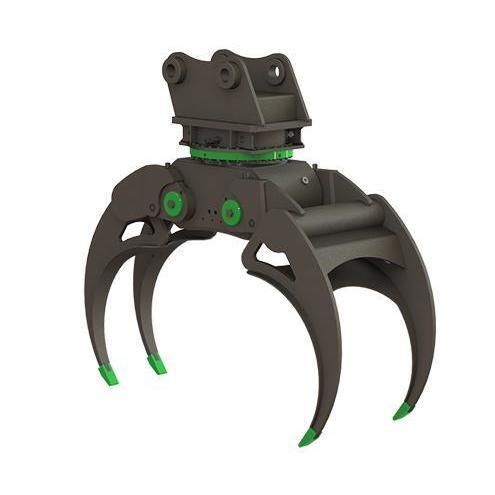

Log grapple MD series

Overview
The Log Grapple provides reliable handling and manipulation of logs using A-synchronous grip technology for secure, precise operation. Constructed from wear-resistant steels including Hardox and Sidur, the tool is designed for demanding work sites. Its balanced design reduces weight while maintaining gripping force. A fully enclosed base drive simplifies operation and reduces injury risk. The unit is supplied with a 3-year warranty and incorporates ecodesign principles to limit environmental impact.

Tool functions

• Timber & log handling

Smart Modular Concept
The Log Grapple is upgradeable via a smart modular concept. Add more than 100 optional functions to expand capabilities and adapt the attachment to varied tasks through seamless upgrades.

Specifications (per model)
MD 3.0
Machine Operating Weight: 3-6 t
Max opening (A): 1300 mm / 51,18 in
Width (B): 500 mm / 19,69 in
Height: 800 mm / 31,50 in
Closing force: 16 kN / 3597 lbf
Arms Weight: 170 kg / 375 lbs
Total Grapple weight (Excavator version): 345 kg / 761 lbs
Total Grapple weight (Crane/Material Handler version): 320 kg / 705 lbs
*Height & Total Grapple Weight values do not include the connection plate.

MD 6.0
Machine Operating Weight: 5-9 t
Max opening (A): 1450 mm / 57,09 in
Width (B): 600 mm / 23,62 in
Height: 900 mm / 35,43 in
Closing force: 29 kN / 6519 lbf
Arms Weight: 230 kg / 507 lbs
Total Grapple weight (Excavator version): 465 kg / 1025 lbs
Total Grapple weight (Crane/Material Handler version): 445 kg / 981 lbs
*Height & Total Grapple Weight values do not include the connection plate.

MD 9.0
Machine Operating Weight: 8-14 t
Max opening (A): 1600 mm / 62,99 in
Width (B): 700 mm / 27,56 in
Height: 930 mm / 36,61 in
Closing force: 31 kN / 6969 lbf
Arms Weight: 280 kg / 617 lbs
Total Grapple weight (Excavator version): 540 kg / 1190 lbs
Total Grapple weight (Crane/Material Handler version): 510 kg / 1124 lbs
*Height & Total Grapple Weight values do not include the connection plate.

MD 12.0
Machine Operating Weight: 10-15 t
Max opening (A): 1650 mm / 64,96 in
Width (B): 750 mm / 29,53 in
Height: 1100 mm / 43,31 in
Closing force: 36 kN / 8093 lbf
Arms Weight: 360 kg / 794 lbs
Total Grapple weight (Excavator version): 705 kg / 1554 lbs
Total Grapple weight (Crane/Material Handler version): 705 kg / 1554 lbs
*Height & Total Grapple Weight values do not include the connection plate.

MD 16.0
Machine Operating Weight: 15-20 t
Max opening (A): 1700 mm / 66,93 in
Width (B): 800 mm / 31,50 in
Height: 1300 mm / 51,18 in
Closing force: 46 kN / 10341 lbf
Arms Weight: 504 kg / 1111 lbs
Total Grapple weight (Excavator version): 979 kg / 2158 lbs
Total Grapple weight (Crane/Material Handler version): 979 kg / 2158 lbs
*Height & Total Grapple Weight values do not include the connection plate.

MD 20.0
Machine Operating Weight: 19-22 t
Max opening (A): 1800 mm / 70,87 in
Width (B): 900 mm / 35,43 in
Height: 1500 mm / 59,06 in
Closing force: 55 kN / 12364 lbf
Arms Weight: 620 kg / 1367 lbs
Total Grapple weight (Excavator version): 1320 kg / 2910 lbs
Total Grapple weight (Crane/Material Handler version): 1250 kg / 2756 lbs
*Height & Total Grapple Weight values do not include the connection plate.

MD 25.0
Machine Operating Weight: 21-29 t
Max opening (A): 1900 mm / 74,80 in
Width (B): 950 mm / 37,40 in
Height: 1500 mm / 59,06 in
Closing force: 75 kN / 16861 lbf
Arms Weight: 690 kg / 1521 lbs
Total Grapple weight (Excavator version): 1470 kg / 3241 lbs
Total Grapple weight (Crane/Material Handler version): 1400 kg / 3086 lbs
*Height & Total Grapple Weight values do not include the connection plate.

Technical features / specifications

• Materials: Wear-resistant steel (including Hardox and Sidur).
• Grip technology: A-synchronous grip for secure and precise operation.
• Drive: Fully enclosed base drive to ensure operational simplicity and safety.
• Warranty: 3-year warranty.
• Ecodesign: Eco-friendly design to reduce environmental impact.
• Modularity: Smart modular concept — upgradeable with 100+ additional functions.
• MD 3.0 — Operating weight 3-6 t; Max opening 1300 mm; Width 500 mm; Height 800 mm; Closing force 16 kN; Arms weight 170 kg; Total weight (Excavator) 345 kg; Total weight (Crane) 320 kg.
• MD 6.0 — Operating weight 5-9 t; Max opening 1450 mm; Width 600 mm; Height 900 mm; Closing force 29 kN; Arms weight 230 kg; Total weight (Excavator) 465 kg; Total weight (Crane) 445 kg.
• MD 9.0 — Operating weight 8-14 t; Max opening 1600 mm; Width 700 mm; Height 930 mm; Closing force 31 kN; Arms weight 280 kg; Total weight (Excavator) 540 kg; Total weight (Crane) 510 kg.
• MD 12.0 — Operating weight 10-15 t; Max opening 1650 mm; Width 750 mm; Height 1100 mm; Closing force 36 kN; Arms weight 360 kg; Total weight (both versions) 705 kg.
• MD 16.0 — Operating weight 15-20 t; Max opening 1700 mm; Width 800 mm; Height 1300 mm; Closing force 46 kN; Arms weight 504 kg; Total weight 979 kg.
• MD 20.0 — Operating weight 19-22 t; Max opening 1800 mm; Width 900 mm; Height 1500 mm; Closing force 55 kN; Arms weight 620 kg; Total weight (Excavator) 1320 kg; (Crane) 1250 kg.
• MD 25.0 — Operating weight 21-29 t; Max opening 1900 mm; Width 950 mm; Height 1500 mm; Closing force 75 kN; Arms weight 690 kg; Total weight (Excavator) 1470 kg; (Crane) 1400 kg.
