Felling head MD series

Product overview

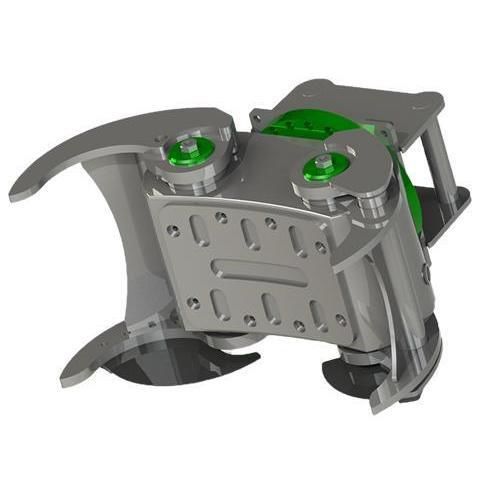

The Tree Shear Grapple is a hydraulic cutting grapple designed to cut and hold trees, bushes and branches while mounted on excavators and carriers. Constructed from wear-resistant steel, it combines a patented dual-blade cutting system with an enclosed drive for operator safety and reliable field performance.

Tool functions

• Cutting trees, branches and bushes
• Field, forest and overgrown land clearing
• Greenery pruning and shrub clearing
• Riverbank and riparian vegetation cleaning

Smart modular concept
The grapple is compatible with a modular upgrade system offering over 100 additional functions. Modular upgrades allow quick adaptation to different tasks and extend the operational capability of the base unit.

Specifications (per model)
MD 3.0
Machine operating weight: 3–6 t
Max opening (A): 1160 mm / 45.67 in
Width (B): 460 mm / 18.11 in
Maximum cutting diameter (C): 150 mm / 5.91 in
Closing force: 16 kN / 3597 lbf
Arms weight: 145 kg / 320 lbs
Total grapple weight: 320 kg / 795 lbs

MD 6.0
Machine operating weight: 5–9 t
Max opening (A): 1430 mm / 56.30 in
Width (B): 540 mm / 21.26 in
Maximum cutting diameter (C): 200 mm / 7.87 in
Closing force: 29 kN / 6519 lbf
Arms weight: 186 kg / 410 lbs
Total grapple weight: 421 kg / 928 lbs

MD 9.0
Machine operating weight: 8–14 t
Max opening (A): 1680 mm / 66.14 in
Width (B): 540 mm / 21.26 in
Maximum cutting diameter (C): 250 mm / 9.84 in
Closing force: 31 kN / 6969 lbf
Arms weight: 255 kg / 562 lbs
Total grapple weight: 515 kg / 1135 lbs

MD 12.0
Machine operating weight: 10–15 t
Max opening (A): 1850 mm / 72.83 in
Width (B): 600 mm / 23.62 in
Maximum cutting diameter (C): 300 mm / 11.81 in
Closing force: 36 kN / 8093 lbf
Arms weight: 315 kg / 694 lbs
Total grapple weight: 660 kg / 1455 lbs

MD 16.0
Machine operating weight: 15–20 t
Max opening (A): 2000 mm / 78.74 in
Width (B): 700 mm / 27.56 in
Maximum cutting diameter (C): 350 mm / 13.78 in
Closing force: 46 kN / 10341 lbf
Arms weight: 480 kg / 1058 lbs
Total grapple weight: 955 kg / 2105 lbs

MD 20.0
Machine operating weight: 19–22 t
Max opening (A): 2400 mm / 94.49 in
Width (B): 900 mm / 35.43 in
Maximum cutting diameter (C): 400 mm / 15.75 in
Closing force: 55 kN / 12364 lbf
Arms weight: 715 kg / 1576 lbs
Total grapple weight: 1415 kg / 3120 lbs

MD 25.0
Machine operating weight: 21–29 t
Max opening (A): 2400 mm / 94.49 in
Width (B): 900 mm / 35.43 in
Maximum cutting diameter (C): 400 mm / 15.75 in
Closing force: 65 kN / 14613 lbf
Arms weight: 730 kg / 1609 lbs
Total grapple weight: 1510 kg / 3329 lbs

MD 30.0
Machine operating weight: 27–45 t
Max opening (A): 3000 mm / 118.11 in
Width (B): 1000 mm / 39.37 in
Maximum cutting diameter (C): 500 mm / 19.69 in
Closing force: 125 kN / 28101 lbf
Arms weight: 1000 kg / 2205 lbs
Total grapple weight: 2400 kg / 5291 lbs

Technical characteristics

• Brand: Modularis drive
• Construction: wear-resistant steel
• Cutting system: patented dual-blade cutting system (vine shear dynamic cutting principle)
• Drive: enclosed drive for operator safety
• Primary functions: cutting and simultaneous holding of trees, bushes and branches
• Applications: field clearing, forestry work, shrub clearing, riverbank cleaning, pruning
• Warranty: 3-year warranty
• Available MD model range: MD 3.0, MD 6.0, MD 9.0, MD 12.0, MD 16.0, MD 20.0, MD 25.0, MD 30.0 (see model specs above)
• Notes: Maximum cutting diameter values are estimates for soft wood (e.g. birch, spruce, linden, alder); total grapple weight excludes connection plate; connection plate must be mounted at a 30° or 45° angle
