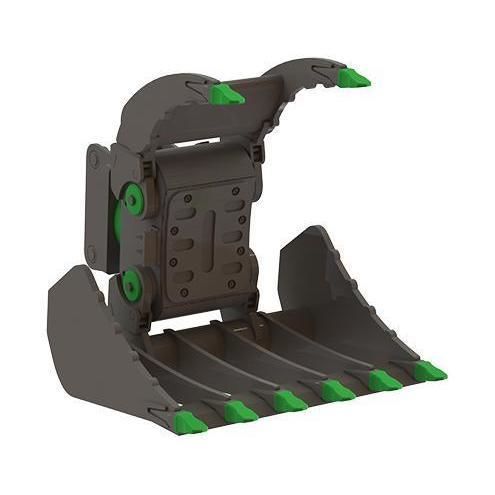

Wood sorting grapple MD series

pulpwoodwaste collectionconstruction site

Product overview
The Screening Grapple is designed for land preparation and clearing. It features A-synchronous gripping technology that allows each jaw to move independently, ensuring secure handling of uneven loads and irregular surfaces. The structure is reinforced with wear-resistant steel for extended service life. Typical applications include ground levelling, debris removal and vegetation management. Supplied with a 3-year warranty.

Tool functions

• Biomass handling
• Cleaning of fields, forests and overgrown farmland
• Ground clearing
• Ground levelling

Smart Modular Concept
The Screening Grapple supports modular upgrades: more than 100 additional functions are available to tailor the tool to specific tasks. The modular concept enables straightforward retrofits to optimize performance per application.

Technical specifications

• MD 3.0
  Machine operating weight: 3-6 t
  Max opening (A): 950 mm / 37.40 in
  Width (B): 850 mm / 33.46 in
  Closing force: 16 kN / 3597 lbf
  Arms weight: 196 kg / 432 lbs
  Total grapple weight*: 371 kg / 818 lbs
  *Total grapple weight does not include the connection plate.
• MD 6.0
  Machine operating weight: 5-9 t
  Max opening (A): 1100 mm / 43.31 in
  Width (B): 1000 mm / 39.37 in
  Closing force: 29 kN / 6519 lbf
  Arms weight: 249 kg / 549 lbs
  Total grapple weight*: 484 kg / 1067 lbs
  *Total grapple weight does not include the connection plate.
• MD 9.0
  Machine operating weight: 8-14 t
  Max opening (A): 1250 mm / 49.21 in
  Width (B): 1150 mm / 45.28 in
  Closing force: 31 kN / 6969 lbf
  Arms weight: 315 kg / 694 lbs
  Total grapple weight*: 575 kg / 1268 lbs
  *Total grapple weight does not include the connection plate.
