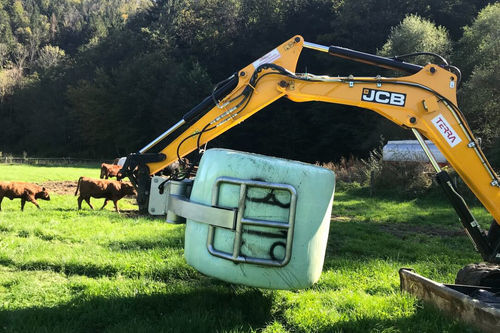

Bale clamp MD series

Description
The Bale Grapple sets a new standard in bale handling, employing an A-synchronous grip and adaptable jaws for secure and efficient manipulation of bales. Engineered with rigorous safety measures, including a fully enclosed base drive system, it reduces operational risks. Built from durable, wear-resistant steel, it withstands tough conditions while featuring a lightweight construction that maintains performance. Ideal for farmers, the tool enables easy and reliable bale handling and is backed by a 3-year warranty with environmental considerations incorporated in the design.

Smart Modular Concept
The Bale Grapple can be easily upgraded. Increase functionality with more than 100 additional functions. The smart modular concept ensures the machine is always ready for different tasks and optimizes performance through seamless upgrades.

Tool functions

• Bale handling (pick-up and transport)

Specifications

• MD 3.0
  • Machine operating weight: 3-6 t
  • Max bale diameter: 1600 mm / 62.99 in
  • Max opening (A): 1800 mm / 70.87 in
  • Width (B): 750 mm / 29.53 in
  • Arms weight: 180 kg / 397 lbs
  • Total grapple weight: 355 kg / 783 lbs (does not include connection plate)
• MD 6.0
  • Machine operating weight: 5-9 t
  • Max bale diameter: 1800 mm / 70.87 in
  • Max opening (A): 2000 mm / 78.74 in
  • Width (B): 750 mm / 29.53 in
  • Arms weight: 200 kg / 441 lbs
  • Total grapple weight: 435 kg / 959 lbs (does not include connection plate)
• MD 9.0
  • Machine operating weight: 8-14 t
  • Max bale diameter: 1800 mm / 70.87 in
  • Max opening (A): 2000 mm / 78.74 in
  • Width (B): 750 mm / 29.53 in
  • Arms weight: 230 kg / 507 lbs
  • Total grapple weight: 490 kg / 1080 lbs (does not include connection plate)

Technical characteristics

• Material: durable, wear-resistant steel
• Drive: fully enclosed base drive system (increased safety)
• Grip type: A-synchronous grip with adaptable jaws
• Design: lightweight construction that maintains high power
• Warranty: 3-year warranty
• Environmental considerations incorporated in design
