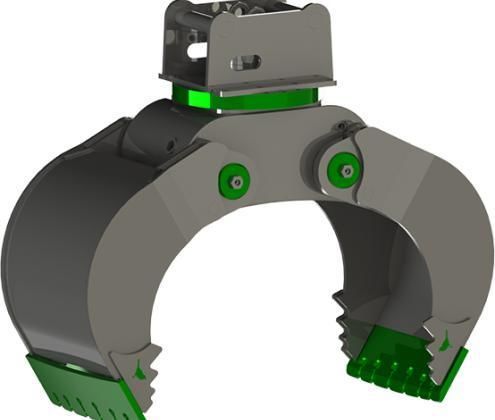

Sorting load lifting grab MD series

demolitionhydraulicwood

Overview
The Best Grip grapple is a universal attachment for construction and demolition tasks, designed for lifting, handling and on-site cleanup. It features an A‑synchronous grip design for safer handling, a lightweight structure for improved operator control and a 3‑year warranty. The attachment supports multi-function use to increase site efficiency, reduce operational cost and promote sustainable operations.

Tool functions

• Building retaining walls
• Concrete & plastic pipe handling
• Construction & concrete element handling
• Demolition & building removal
• Earth digging, gravel & sand handling
• Pile placement
• Removal of large trees, roots and stumps
• River bank cleaning
• Rock handling & stone placement
• Steel & metal element handling
• Steel structure demolition
• Timber & log handling

Smart Modular Concept
Best Grip is built on a modular concept that allows easy upgrades and configuration changes. Increase the functionality of your carrier with more than 100 optional modules and tools. The modular system enables rapid task adaptation and optimizes machine uptime through seamless retrofits.

Visuals and product documentation
Rendered images, assembly drawings and technical datasheets are available to illustrate installation, dimensions and application examples.

Characteristics / Technical specifications

• MD 3.0
  Machine operating weight: 3–6 t
  Volume: 70 l / 0,09 cy
  Max opening (A): 1160 mm / 45.67 in
  Width (B): 460 mm / 18.11 in
  Height: 750 mm / 29.53 in
  Closing force: 16 kN / 3597 lbf
  Arms weight: 95 kg / 209 lbs
  Total grapple weight:* 270 kg / 595 lbs
• MD 6.0
  Machine operating weight: 5–9 t
  Volume: 150 l / 0,20 cy
  Max opening (A): 1430 mm / 56.30 in
  Width (B): 540 mm / 21.26 in
  Height: 880 mm / 34.65 in
  Closing force: 29 kN / 6519 lbf
  Arms weight: 153 kg / 337 lbs
  Total grapple weight:* 388 kg / 855 lbs
• MD 9.0
  Machine operating weight: 8–14 t
  Volume: 250 l / 0,33 cy
  Max opening (A): 1680 mm / 66.14 in
  Width (B): 540 mm / 21.26 in
  Height: 1015 mm / 39.96 in
  Closing force: 31 kN / 6969 lbf
  Arms weight: 220 kg / 485 lbs
  Total grapple weight:* 480 kg / 1058 lbs
• MD 12.0
  Machine operating weight: 10–15 t
  Volume: 300 l / 0,39 cy
  Max opening (A): 1850 mm / 72.83 in
  Width (B): 600 mm / 23.62 in
  Height: 1260 mm / 49.61 in
  Closing force: 36 kN / 8093 lbf
  Arms weight: 240 kg / 529 lbs
  Total grapple weight:* 585 kg / 1290 lbs
• MD 16.0
  Machine operating weight: 15–20 t
  Volume: 420 l / 0,55 cy
  Max opening (A): 2000 mm / 78.74 in
  Width (B): 700 mm / 27.56 in
  Height: 1370 mm / 53.94 in
  Closing force: 46 kN / 10341 lbf
  Arms weight: 370 kg / 816 lbs
  Total grapple weight:* 845 kg / 1863 lbs
• MD 20.0
  Machine operating weight: 19–22 t
  Volume: 560 l / 0,73 cy
  Max opening (A): 2400 mm / 94.49 in
  Width (B): 900 mm / 35.43 in
  Height: 1560 mm / 61.42 in
  Closing force: 55 kN / 12364 lbf
  Arms weight: 610 kg / 1345 lbs
  Total grapple weight:* 1310 kg / 2888 lbs
• MD 25.0
  Machine operating weight: 21–29 t
  Volume: 760 l / 0,99 cy
  Max opening (A): 2400 mm / 94.49 in
  Width (B): 900 mm / 35.43 in
  Height: 1560 mm / 61.42 in
  Closing force: 65 kN / 14613 lbf
  Arms weight: 646 kg / 1424 lbs
  Total grapple weight:* 1426 kg / 3144 lbs
• MD 30.0
  Machine operating weight: 27–45 t
  Volume: 870 l / 1,14 cy
  Max opening (A): 3000 mm / 118.11 in
  Width (B): 1000 mm / 39.37 in
  Height: 1650 mm / 64.96 in
  Closing force: 125 kN / 28101 lbf
  Arms weight: 900 kg / 1984 lbs
  Total grapple weight:* 2300 kg / 5071 lbs
• *Total grapple weight does not include the connection plate.
