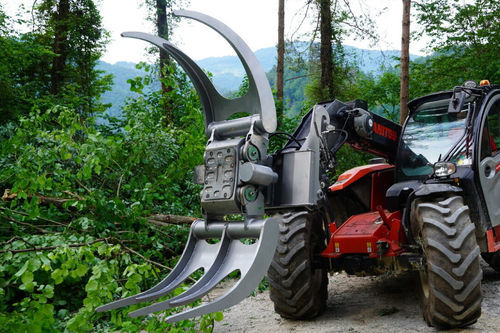

Bunching grab MD series

hydraulicwoodwaste collection

Product overview
The Biomass Grapple features an A-synchronous grip and precision-engineered jaws for safe handling of silage bales, branches and general biomass. Its structure uses wear-resistant steel such as Hardox to reduce weight while maintaining high abrasion resistance. The fully enclosed base drive improves operational safety and simplifies maintenance. Designed for professional applications, the attachment increases handling efficiency and includes a 3-year warranty.

Key features

• A-synchronous grip for controlled, safe gripping action
• Precision-engineered jaws suitable for silage bales, branches and general biomass
• Wear‑resistant steel construction (e.g. Hardox) for weight reduction and abrasion resistance
• Fully enclosed base drive for safe operation and reduced maintenance exposure
• Optimised geometry for efficient biomass handling
• 3‑year warranty

Tool functions

• Bale handling and transport
• Cleaning of fields, forests and overgrown farmland (branch clearing, biomass collection)

Smart Modular Concept
The grapple can be upgraded through a modular concept with more than 100 optional functions. Modular upgrades allow adaptation to different tasks and incremental performance additions without major equipment changes.

Technical specifications

• MD 3.0
  Machine operating weight: 3–6 t
  Max opening (A): 1500 mm / 59.06 in
  Width (B): 700 mm / 27.56 in
  Max bale diameter: 280 mm / 11.02 in
  Height: 950 mm / 37.40 in
  Closing force: 16 kN / 3597 lbf
  Arms weight: 170 kg / 375 lbs
  Total grapple weight: 345 kg / 761 lbs
  (Note: Height & Total Grapple Weight values do not include the connection plate.)
• MD 6.0
  Machine operating weight: 5–9 t
  Max opening (A): 1700 mm / 66.93 in
  Width (B): 800 mm / 31.50 in
  Max bale diameter: 340 mm / 13.30 in
  Height: 1100 mm / 43.31 in
  Closing force: 29 kN / 6519 lbf
  Arms weight: 230 kg / 507 lbs
  Total grapple weight: 465 kg / 1025 lbs
  (Note: Height & Total Grapple Weight values do not include the connection plate.)
• MD 9.0
  Machine operating weight: 8–14 t
  Max opening (A): 1980 mm / 77.95 in
  Width (B): 900 mm / 35.43 in
  Max bale diameter: 400 mm / 15.75 in
  Height: 1350 mm / 53.15 in
  Closing force: 31 kN / 6969 lbf
  Arms weight: 280 kg / 617 lbs
  Total grapple weight: 540 kg / 1190 lbs
  (Note: Height & Total Grapple Weight values do not include the connection plate.)
• MD 12.0
  Machine operating weight: 10–15 t
  Max opening (A): 2100 mm / 82.68 in
  Width (B): 1000 mm / 39.37 in
  Max bale diameter: 400 mm / 15.75 in
  Height: 1450 mm / 57.09 in
  Closing force: 36 kN / 8093 lbf
  Arms weight: 370 kg / 816 lbs
  Total grapple weight: 715 kg / 1577 lbs
  (Note: Height & Total Grapple Weight values do not include the connection plate.)
• MD 16.0
  Machine operating weight: 15–20 t
  Max opening (A): 2300 mm / 90.55 in
  Width (B): 1100 mm / 43.31 in
  Max bale diameter: 500 mm / 19.69 in
  Height: 1640 mm / 64.57 in
  Closing force: 46 kN / 10341 lbf
  Arms weight: 540 kg / 1190 lbs
  Total grapple weight: 1015 kg / 2237 lbs
  (Note: Height & Total Grapple Weight values do not include the connection plate.)
• MD 20.0
  Machine operating weight: 19–22 t
  Max opening (A): 2650 mm / 104.33 in
  Width (B): 1200 mm / 47.24 in
  Max bale diameter: 600 mm / 23.62 in
  Height: 1850 mm / 72.83 in
  Closing force: 55 kN / 12364 lbf
  Arms weight: 730 kg / 1609 lbs
  Total grapple weight: 1430 kg / 3152 lbs
  (Note: Height & Total Grapple Weight values do not include the connection plate.)
• MD 25.0
  Machine operating weight: 21–29 t
  Max opening (A): 2700 mm / 106.30 in
  Width (B): 1300 mm / 51.18 in
  Max bale diameter: 600 mm / 23.62 in
  Height: 1900 mm / 74.80 in
  Closing force: 75 kN / 16861 lbf
  Arms weight: 790 kg / 1742 lbs
  Total grapple weight: 2190 kg / 4828 lbs
  (Note: Height & Total Grapple Weight values do not include the connection plate.)
