Demolition grab MD series
hydraulicfor concretefor excavators

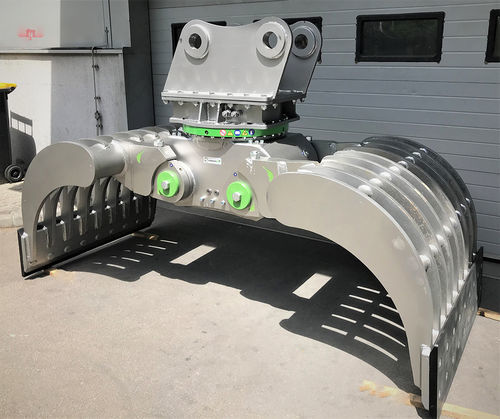

Demolition grab - MD series  - Modularis Drive - hydraulic / for concrete / for excavators
Demolition grab - MD series  - Modularis Drive - hydraulic / for concrete / for excavators
Demolition grab - MD series  - Modularis Drive - hydraulic / for concrete / for excavators - image - 2
Demolition grab - MD series  - Modularis Drive - hydraulic / for concrete / for excavators - image - 3
Demolition grab - MD series  - Modularis Drive - hydraulic / for concrete / for excavators - image - 4
Add to favorites
Compare this product

Characteristics

Type
demolition
Operation
hydraulic
Applications
for concrete
Other characteristics
for excavators
Carrier weight

Max.: 45,000 kg
(99,208 lb)

Min.: 3,000 kg
(6,614 lb)

Volume

0.2 m³, 0.4 m³, 0.6 m³, 0.7 m³, 1 m³, 1.2 m³
(7.1 ft³, 14.1 ft³, 21.2 ft³, 24.7 ft³, 35.3 ft³, 42.4 ft³)

Grapnel weight

313 kg, 475 kg, 610 kg, 775 kg, 1,100 kg, 1,600 kg, 1,760 kg, 2,830 kg
(690 lb, 1,047 lb, 1,345 lb, 1,709 lb, 2,425 lb, 3,527 lb, 3,880 lb, 6,239 lb)

Description

Overview
The Heavy Duty Demolition Grapple sets a new standard for construction technology safety and efficiency, featuring a patented A-synchronous grip and precision-engineered jaws. Its fully enclosed drive system ensures simplicity and reliability in operation. Built from high-quality, wear-resistant steel (Hardox/Sidur), the grapple is optimized for unmatched performance with a lightweight design and superior gripping power. The product features an eco-friendly closed housing design and is supplied with a 3-year warranty.

Main features
  • Patented A-synchronous grip for reliable and safe demolition handling
  • Precision-engineered jaws for optimal material retention and control
  • Fully enclosed drive system for simplicity and long-term reliability
  • Constructed from wear-resistant steel (Hardox / Sidur) for extended durability
  • Lightweight design delivering high gripping power and optimized performance
  • Eco-friendly closed housing design
  • 3-year warranty

Smart Modular Concept
The Heavy Duty Demolition Grapple can be easily upgraded. Increase the functionality of your equipment with more than 100 additional functions. The smart modular concept ensures your machine is always ready for different tasks and optimizes your performance with seamless upgrades.

Specifications by model
MD 3.0
  • Machine operating weight: 3-6 t
  • Volume: 170 l / 0.22 cy
  • Max opening (A): 1150 mm / 45.28 in
  • Width (B): 550 mm / 21.65 in
  • Height:* 750 mm / 29.53 in
  • Closing force: 16 kN / 3597 lbf
  • Arms weight: 138 kg / 304 lbs
  • Total grapple weight:* 313 kg / 690 lbs
  • *Height & Total Grapple Weight values do not include the connection plate.

MD 6.0
  • Machine operating weight: 5-9 t
  • Volume: 215 l / 0.28 cy
  • Max opening (A): 1400 mm / 55.12 in
  • Width (B): 650 mm / 25.59 in
  • Height:* 880 mm / 34.65 in
  • Closing force: 29 kN / 6519 lbf
  • Arms weight: 240 kg / 529 lbs
  • Total grapple weight:* 475 kg / 1047 lbs
  • *Height & Total Grapple Weight values do not include the connection plate.

MD 9.0
  • Machine operating weight: 8-14 t
  • Volume: 390 l / 0.51 cy
  • Max opening (A): 1800 mm / 70.87 in
  • Width (B): 750 mm / 29.53 in
  • Height:* 1015 mm / 39.96 in
  • Closing force: 31 kN / 6969 lbf
  • Arms weight: 350 kg / 772 lbs
  • Total grapple weight:* 610 kg / 1345 lbs
  • *Height & Total Grapple Weight values do not include the connection plate.

MD 12.0
  • Machine operating weight: 10-15 t
  • Volume: 630 l / 0.82 cy
  • Max opening (A): 2000 mm / 78.74 in
  • Width (B): 800 mm / 31.50 in
  • Height:* 1260 mm / 49.61 in
  • Closing force: 36 kN / 8093 lbf
  • Arms weight: 430 kg / 948 lbs
  • Total grapple weight:* 775 kg / 1709 lbs
  • *Height & Total Grapple Weight values do not include the connection plate.

MD 16.0
  • Machine operating weight: 15-20 t
  • Volume: 700 l / 0.92 cy
  • Max opening (A): 2100 mm / 82.68 in
  • Width (B): 900 mm / 35.43 in
  • Height:* 1370 mm / 53.94 in
  • Closing force: 46 kN / 10341 lbf
  • Arms weight: 625 kg / 1378 lbs
  • Total grapple weight:* 1100 kg / 2425 lbs
  • *Height & Total Grapple Weight values do not include the connection plate.

MD 20.0
  • Machine operating weight: 19-22 t
  • Volume: 950 l / 1.24 cy
  • Max opening (A): 2400 mm / 94.49 in
  • Width (B): 1000 mm / 39.37 in
  • Height:* 1560 mm / 61.42 in
  • Closing force: 55 kN / 12364 lbf
  • Arms weight: 900 kg / 1984 lbs
  • Total grapple weight:* 1600 kg / 3527 lbs
  • *Height & Total Grapple Weight values do not include the connection plate.

MD 25.0
  • Machine operating weight: 21-29 t
  • Volume: 950 l / 1.24 cy
  • Max opening (A): 2400 mm / 94.49 in
  • Width (B): 1100 mm / 43.31 in
  • Height:* 1560 mm / 61.42 in
  • Closing force: 75 kN / 16861 lbf
  • Arms weight: 980 kg / 2161 lbs
  • Total grapple weight:* 1760 kg / 3880 lbs
  • *Height & Total Grapple Weight values do not include the connection plate.

MD 30.0
  • Machine operating weight: 27-45 t
  • Volume: 1200 l / 1.57 cy
  • Max opening (A): 2700 mm / 106.30 in
  • Width (B): 1200 mm / 47.24 in
  • Height:* 1650 mm / 64.96 in
  • Closing force: 85 kN / 19109 lbf
  • Arms weight: 1430 kg / 3153 lbs
  • Total grapple weight:* 2830 kg / 6239 lbs
  • *Height & Total Grapple Weight values do not include the connection plate.

Caractéristiques / spécifications techniques
  • Material: wear-resistant steel (Hardox / Sidur)
  • Drive: fully enclosed drive system
  • Grip type: patented A-synchronous grip
  • Design: lightweight, optimized for high gripping power
  • Warranty: 3-year warranty
  • Eco-features: closed housing (eco-friendly design)
  • Modularity: upgradable with 100+ additional functions via smart modular concept
  • Notes: Height and Total Grapple Weight values in model tables do not include the connection plate
