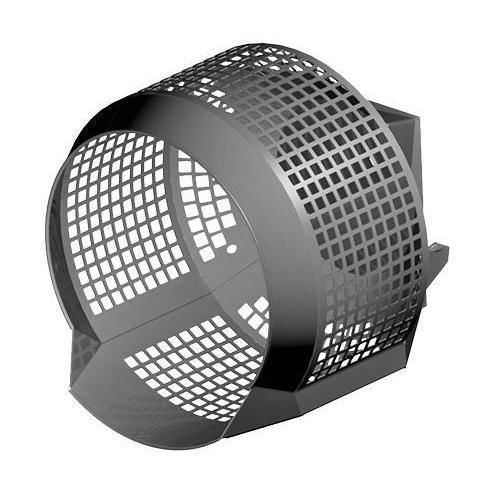

Screening bucket MD series

for excavators

Product overview
The Screening Bucket is an attachment for sorting, sifting and screening soil, sand, gravel and other landscape or construction materials. Its fully enclosed base drive simplifies operation and reduces injury risk while facilitating maintenance. Constructed from wear-resistant steels such as Hardox and Sidur and supplied with a 3-year warranty.

Maximize efficiency with advanced screening technology
The screening mechanism is designed to optimize material throughput and screening accuracy across a range of particle sizes, improving jobsite productivity.

Grid hole sizes

• 24x24
• 32x32
• 44x44
• 50x50
• 66x66
• 88x88

Tool functions

• Screening and selection of soil, sand, gravel and other materials

Smart modular concept
The Screening Bucket is compatible with a modular upgrade system offering more than 100 additional functions, allowing fast reconfiguration for varied tasks and optimized performance.

Materials and safety

• Wear-resistant steels: Hardox and Sidur
• Fully enclosed base drive to simplify operation and reduce injury risk
• Design adapted for heavy-duty use
• Comprehensive 3-year warranty

Technical specifications

• Series: MD series
• MD 3.0 — Machine operating weight: 3–6 t; Bucket volume: 400 l (0.52 cy); Diameter: 1000 mm; Bucket weight: 160 kg; Total grapple weight*: 335 kg
• MD 6.0 — Machine operating weight: 5–9 t; Bucket volume: 500 l (0.65 cy); Diameter: 1000 mm; Bucket weight: 200 kg; Total grapple weight*: 435 kg
• MD 9.0 — Machine operating weight: 8–14 t; Bucket volume: 900 l (1.18 cy); Diameter: 1200 mm; Bucket weight: 290 kg; Total grapple weight*: 550 kg
• MD 12.0 — Machine operating weight: 10–15 t; Bucket volume: 1450 l (1.90 cy); Diameter: 1200 mm; Bucket weight: 360 kg; Total grapple weight*: 705 kg
• MD 16.0 — Machine operating weight: 15–20 t; Bucket volume: 1600 l (2.09 cy); Diameter: 1400 mm; Bucket weight: 520 kg; Total grapple weight*: 995 kg
• MD 20.0 — Machine operating weight: 19–22 t; Bucket volume: 2200 l (2.88 cy); Diameter: 1600 mm; Bucket weight: 750 kg; Total grapple weight*: 1450 kg
• MD 25.0 — Machine operating weight: 21–29 t; Bucket volume: 2200 l (2.88 cy); Diameter: 1600 mm; Bucket weight: 800 kg; Total grapple weight*: 1580 kg

*Total grapple weight does not include the connection plate.
