- DIN rail-mounted terminal block
- Ningbo SUPU Electronics Co., Ltd.

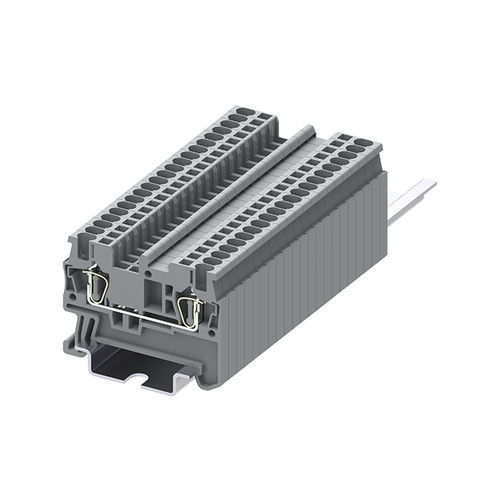

Spring cage connection terminal block TC1.5-2-GYDIN rail-mountedIECgray
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Connection
- spring cage connection
- Other characteristics
- IEC, gray
- Current
17.5 A
- Nominal voltage
500 V
Description
Connection method:Spring-cage connection,IEC Rated Current:17.5A,IEC Rated Voltage:500V,Number of connections:2,Number of levels：1,Cross section:24-16AWG
Parameters
Width
4.2mm
Number of levels
1
Number of connections
2
Connection method
Spring-cage connection
Protection Level
IP20
Insulation material
PA66
Insulation material group
Ⅰ
Contact material
Copper alloy
Contact plating
Sn,Plated
Ambient temperature (operation)
-40℃～105℃
Ambient temperature (assembly)
-5℃～70℃
Ambient temperature (storage)
-25℃～60℃
Permissible humidity (storage/transport)
30%～70%
Catalogs
RAIL-MOUNTED TERMINAL BLOCK
125 Pages
