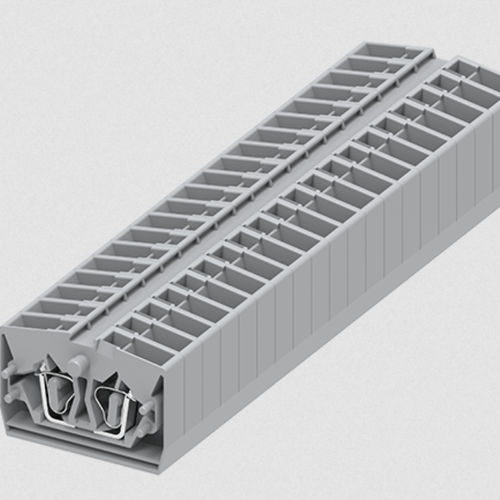

DIN rail-mounted terminal block 254321spring cage connectioncopperIEC
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Connection
- spring cage connection
- Other characteristics
- IEC, copper
- Current
24 A
- Nominal voltage
800 V
Description
Connection method:Spring-cage connection,IEC Rated Current:24A,IEC Rated Voltage:800V,Number of connections:2,Number of levels：1,Cross section:28-12AWG
Parameters
Width
6mm
Number of levels
1
Number of connections
2
Connection method
Spring-cage connection
Protection Level
IP20
Insulation material
PA66
Insulation material group
Ⅰ
Contact material
Copper alloy
Contact plating
Sn,Plated
Ambient temperature (operation)
-40℃～105℃
Ambient temperature (assembly)
-5℃～70℃
Ambient temperature (storage)
-25℃～60℃
Permissible humidity (storage/transport)
30%～70%
