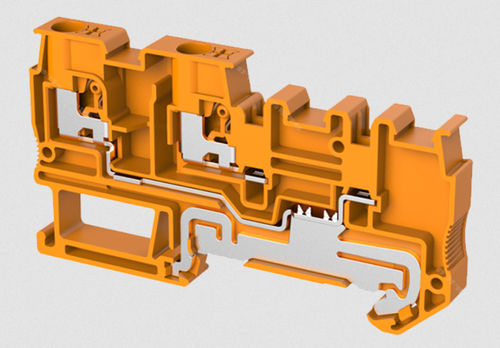

DIN rail-mounted terminal block TPIO2.5-IN-3-PEspringpush-incopper
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Connection
- push-in, spring
- Other characteristics
- IEC, copper
- Cross-section
Max.: 4 mm²
(0.01 in²)Min.: 0.2 mm²
(0 in²)- Current
20 A
- Nominal voltage
250 V
Description
Connection method:Push-in connection,IEC Rated Current:20A,IEC Rated Voltage:250V,Number of connections:2,Number of levels：1,Cross section:24-12AWG
Parameters
Width
7mm
Number of levels
1
Number of connections
2
Connection method
Push-in connection
Protection Level
IP20
Insulation material
PA66
Insulation material group
Ⅰ
Contact material
Copper alloy
Contact plating
Sn,Plated
Ambient temperature (operation)
-40℃～105℃
Ambient temperature (assembly)
-5℃～70℃
Ambient temperature (storage)
-25℃～60℃
Permissible humidity (storage/transport)
30%～70%
Technical data
Overvoltage category
Ⅲ
Degree of pollution
3
Rated impulse voltage
4KV
UL Rated Current
10/16/10A
UL Rated Voltage
300/150/300V
Stripping length
8-10mm
Use group
B/C/D
Rated cross section
24-12AWG
