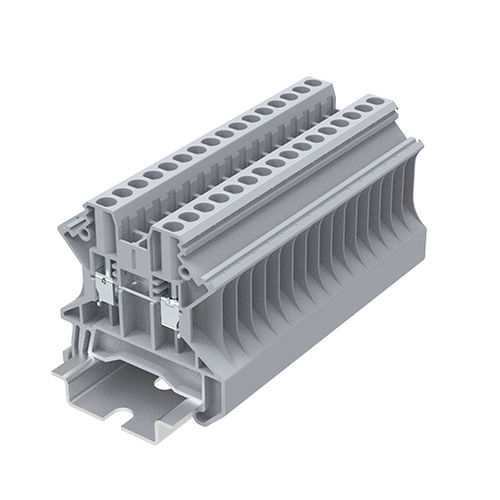

Screw connection terminal block TU2.5-2-GYDIN rail-mountedcopperIEC
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Connection
- screw connection
- Other characteristics
- IEC, gray, copper
- Cross-section
Max.: 4 mm²
(0.01 in²)Min.: 0.2 mm²
(0 in²)- Current
24 A
- Nominal voltage
1,000 V
Description
Connection method:Screw connection,IEC Rated current:24A,IEC Rated Voltage:1000V,Number of connections:2,Number of levels：1,Rated cross section:26-12AWG
Parameters
Width
5.2mm
Number of levels
1
Number of connections
2
Connection method
Screw connection
Protection Level
IP20
Insulation material
PA66
Insulation material group
Ⅰ
Contact material
Copper alloy
Contact plating
Sn,Plated
Ambient temperature (operation)
-40℃～105℃
Ambient temperature (assembly)
-5℃～70℃
Ambient temperature (storage)
-25℃～60℃
Permissible humidity (storage/transport)
30%～70%
Product type
Terminal block of side-entry
Technical data
Overvoltage category
Ⅲ
Degree of pollution
3
Rated impulse voltage
8kV
Locking screw Specification
M2.5
Locking screw torque
0.4N.m
Fixed Screw Specification
/
固定螺钉扭矩
/
Stripping length
9-11mm
Use group
B/C
Rated cross section
26-12AWG
