- Ningbo SUPU Electronics Co., Ltd.

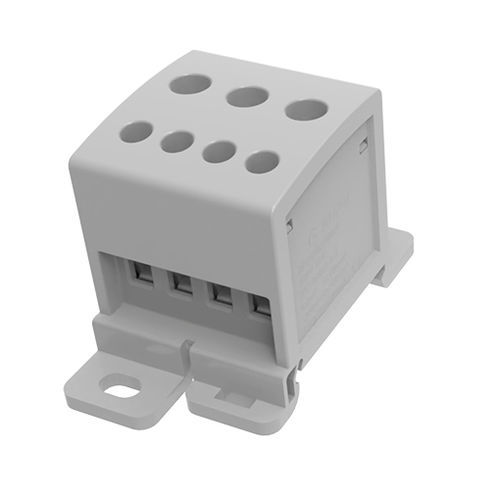

DIN rail-mounted terminal block SPDB3x16/4×6screw connectioncopperhigh-current
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Connection
- screw connection
- Other characteristics
- IEC, copper, high-current
- Cross-section
Max.: 16 mm²
(0.02 in²)Min.: 2.5 mm²
(0 in²)- Current
80 A
- Nominal voltage
690 V
Description
Connection method:Screw connection,IEC Rated Current:80A,IEC Rated Voltage:690V,Number of connections:7,Number of levels:1
Parameters
Width
38.4mm
Number of connections
7
Connection method
Screw connection
Protection Level
IP20
Insulation material
PA66
Insulation material group
Ⅰ
Contact material
Copper alloy
Contact plating
Sn,Plated
Ambient temperature (operation)
-40℃～105℃
Ambient temperature (assembly)
-5℃～70℃
Ambient temperature (storage)
-25℃～60℃
Permissible humidity (storage/transport)
30%～70%
Technical data
Degree of pollution
3
Rated impulse voltage
2.5KV
Locking screw Specification
M4/M5
Locking screw torque
1.2N·m/2.4N·m
Stripping length
13-14mm/10-11mm
短路电流（峰值）
/
短路电流＞1S
/
