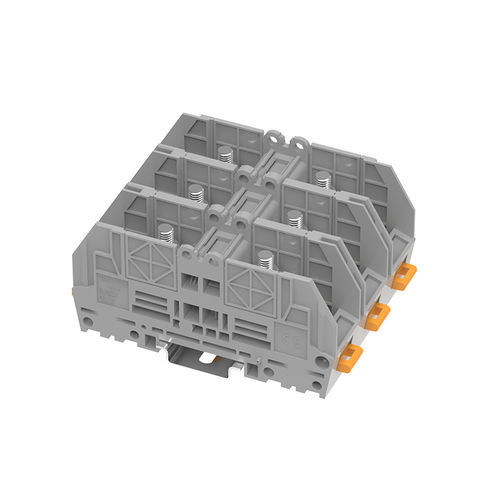

Bolt connector TBO6-2-GY

Connection method:Bolt connection,IEC Rated Current:125A,IEC Rated Voltage:1000V,Number of connections:2,Number of levels:1 Parameters Width 27mm Number of levels 1 Number of connections 2 Connection method Bolt connection Protection Level IP20 Insulation material PA66 Insulation material group Ⅰ Contact material Copper alloy Contact plating Sn,Plated Ambient temperature (operation) -40℃～105℃ Ambient temperature (assembly) -5℃～70℃ Ambient temperature (storage) -25℃～60℃ Permissible humidity (storage/transport) 30%～70% Technical data Overvoltage category Ⅲ Degree of pollution 3 Rated impulse voltage 2.5KV Locking screw Specification M6 Locking screw torque 3.2-3.7N.m Use group B/C/D Rated cross section 12-2AWG UL Rated Current 115A/115A/- UL Rated Current 600V/600V/-
