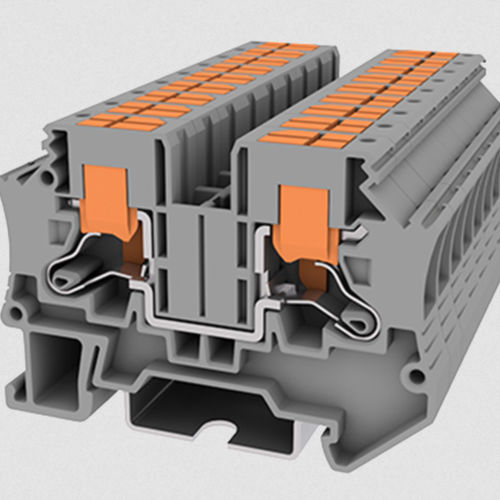

DIN rail-mounted terminal block TPV6-2-GYspringpush-incopper
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Connection
- push-in, spring
- Other characteristics
- IEC, copper
- Cross-section
Min.: 0.2 mm²
(0 in²)Max.: 10 mm²
(0.02 in²)- Current
41 A
- Nominal voltage
1,000 V
Description
Connection method:Push-in connection,IEC Rated Current:41A,IEC Rated Voltage:1000V,Number of connections:2,Number of levels：1,Cross section:20-8AWG
Parameters
Width
8.2mm
Number of levels
1
Number of connections
2
Connection method
Push-in connection
Protection Level
IP20
Insulation material
PA66
Insulation material group
Ⅰ
Contact material
Copper alloy
Contact plating
Sn,Plated
Ambient temperature (operation)
-40℃～105℃
Ambient temperature (assembly)
-5℃～70℃
Ambient temperature (storage)
-25℃～60℃
Permissible humidity (storage/transport)
30%～70%
Technical data
Overvoltage category
Ⅲ
Degree of pollution
3
Rated impulse voltage
8KV
UL Rated Current
40A
UL Rated Voltage
600V
Stripping length
10-12mm
Use group
B/C
Rated cross section
20-8AWG
